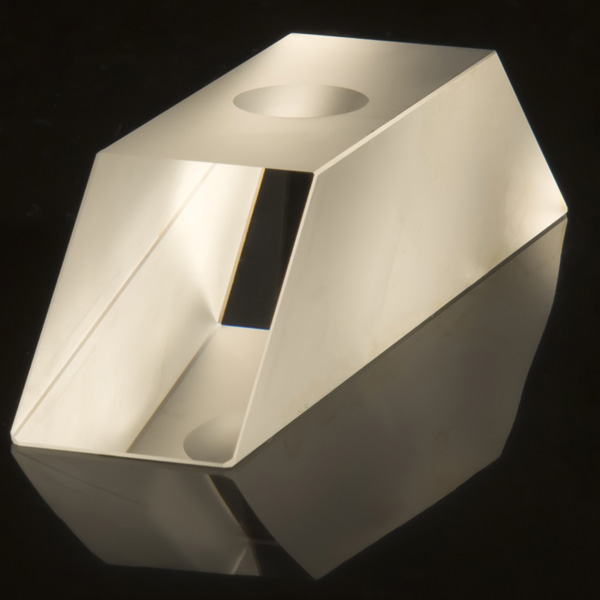

Dove Prism

Dove prisms have an unusual and very interesting characteristic , if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates. For optimal peformance, use dove prisms with collimated light.

Description Of Dove Prism

Ecoptik dove prism have an unusual and very interesting characteristic, if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates.

Specification Of Dove Prism

Material

BK7 glass / Fused Silica

Dimension tolerance

+ 0.0 / -0.2mm

Deviation

3arc min.

Flatness

λ/2@632.8nm

Clear aperture

>85%

Surface quality

60/40, 40/20

Bevel

0.1mm ×45°

Type No.

Size(A×B×C×D)

DP-0.5

0.5mm×2.1 mm×0.5 mm×0.7mm

DP-1.0

1.0 mm×4.2 mm×1.0 mm×1.4mm

DP-2.0

2.0 mm×8.4 mm×2.0 mm×2.8mm

DP-3.0

3.0 mm×12.6 mm×3.0 mm×4.2mm

DP-5.0

5.0 mm×21.4 mm×5.0 mm×7.0mm

DP-10

10.0 mm×44.0 mm×10.0 mm×14.1mm

DP-15

15.0 mm×64.0 mm×15.0 mm×21.2mm

DP-20

20.0 mm×81.3 mm×20.0 mm×28.3mm

DP-25

25 mm×105.7 mm×25.0 mm×35.4mm

Ecoptik is a professional dove prism supplier and custom lens manufacturer, we provide custom optical mirrors, dome flange and etc. Want to know more? Please contact us.

Localisation : No.399 Bocai Road, High-Tech Industrial Development Area, Changchun, Jilin, China 130000, 130000 Changchun,
Personne à contacter : Wu Sandy, +86 (431) 8188 4163
