PM-01D Power Meter

As a fiber optic products supplier in the world, TUOLIMA has been operating in the optical communication industry since 2009, mainly fabricating and selling various fiber optic cable and cable fittings, fiber optic splice closures, distribution boxes with all accessories, FTTH transmission equipment.

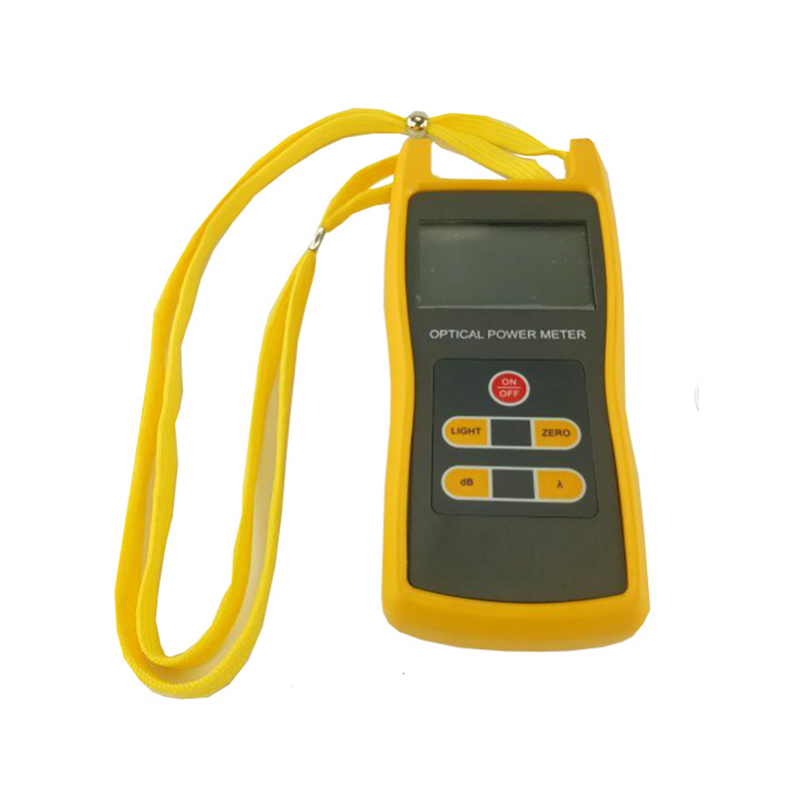

PM-01D handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.

Features of handheld optical power meter ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio. Fiber optic cable power meter have different types for you to choose, such as opm fiber optic meter, ofc power meter, mini optical power meter, optical power meter normal, fiber optic power meter and light source cable, mpo power meter and so on. The optical meter price is also reasonable. Our light source power meter fiber optic cable tools and test equipment deserve your trust, we believe that our optical power detector will up to your standard.

Now, we have various fiber tools and equipment for sale.

Details of PM-01D Power Meter

  1. Maintenance in Telecom
  2. Maintenance CATV
  3. Fiber Optic Lab Testing
  4. Other Fiber Optic Measurements

Advantages of PM-01D Power Meter

  1. User self calibration function
  2. Comfortable LCD display and optional backlight LCD display supports night operation
  3. Power measurements in dBm or mw and insertion loss in dB
  4. Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
  5. 10 minutes Auto-off function can be activated or deactivated

Specification of PM-01D Power Meter

Type

PM-01DA

PM-01DC

Wavelength(nm)

800~1700nm

Detector

InGaAs

Measurement Range (dBm)

-70~+6

-50~+26

Uncertainty

±5%

Calibrated Wavelength(nm)

850,980,1300,1310,1490,1550

Resolution(dB)

0.01

Optical Connector

FC(interchangeable SC,ST) / as well as 2.5mm universal

Power Supply

Alkaline Battery(3 AA 1.5V batteries)

Battery Operating Time

240 h with 1.5V Battery(3)

Operating Temperature(℃)

-10 ~ +60

Storage Temperature(℃)

-25 ~ +70

Relative Humidity

0 to 95% (non-condensing)

Dimension(mm)

175x82x33

Weight(g)

310

Packing and Comments of PM-01D Power Meter

MODEL

INCLUDES

All PM-01D Models

PM-01D Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case.
