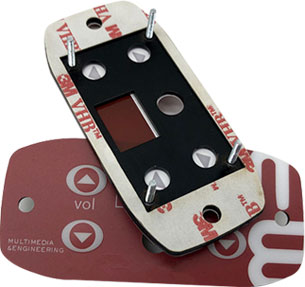

Membrane Switch
|
Mechanical Properties: |
|
Life Expectancy |
Flat type ≥ 5 million times, Tactile type ≥ 1 million times |
Operation Force |
Flat Type 57-284g ,Tactile Type 170-397g |
Dome Rebound Time |
≤6ms |
Tail Bending Performance |
≤180° |
Switch Stroke |
Flat 0.1~0.5mm,Tactile 0.6~1.5mm |
Vibration |
20G's max. |
Thickness |
0.7~1.5 mm |
Electrical Properties: |
|
Rated Voltage |
≤50V DC |
Rated Current |
≤ 100mA |
Operating Power |
≤1W |
Insulation Resistance |
≥100MΩ (250V DC) |
Loop Resistance |
10Ω~2kΩ (Depending on the design) |
Contact Resistance |
0.5 ~ 5Ω (Depending on wire length and the materials) |
Wire Lead Resistance |
<1Ω/cm</span> |
Base Material Voltage Withstand |
1500V DC |
Environmental Properties: |
|
Operation Temperature |
-40°C to +80°C (-40°to 176°F) |
Storage Temperature |
-40°C to +85°C (-40°to 185°F) |
Atmospheric Pressure |
86 ~ 106 kPa |
Humidity |
+40°C, 90%~95%RH for 240 Hours |
Why Choose Our Membrane Switch?
Our Membrane Switch Pad Advantages
Beautiful appearance, Variety color printing.
Small size, light in weight, good tactility, Long life span.
moisture-proof, dustproof, waterproof, anti-corrosion, and erosion of harmful gases proof.
Easy to operate, intuitive, safe and reliable
Cost-effective, convenient installation
Komkey is one of the reliable membrane keyboard suppliers offering custom membrane keypad design service
Customized specification is available, the Smaller volume can be accepted.
Customized logo/Brand/Contact way can be printed in the overlay for advertisement.
Komkey is a recognized worldwide membrane switches supplier specializing in Membrane switch, Silicone rubber keypad, Graphic overlay, and touch screen. In the mean times, we also provide assembling and cutting for a custom application such as custom membrane keypad, custom membrane switch panel, membrane button panel.
