Hydraulic Tubing

Product description

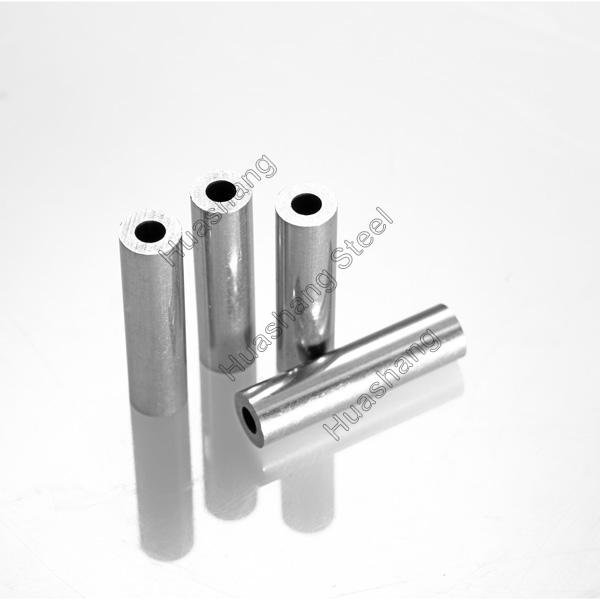

Hydraulic Tubing Description

Huashang Hydraulic tube in a comprehensive range of corrosion-resistant stainless steels and nickel alloys protecting outdoor diameters from (OD) 2.0 to 38 mm. All sizes are provided with clean surfaces and shut dimensional tolerances reducing the risk of leakages when connecting tubes with couplings.

HUASHANG hydraulic tube length is straight, but our tubes can additionally be delivered as coiled tubing, contributing to reduced installation costs. HUASHANG hydraulic tubes are characterized by using high cleanliness, and tubes with OD large than 5 mm are delivered with plugged ends for transport protection towards inside contamination.

Hydraulic tubes are applied to many industries, such as instruments and meters, petroleum, medicine, chemical industry, water purification, gas and pressure vessel. In order to ensure the quality of the instrumentation tube, we will be according to the standard to do an inspection, such as chemical analysis, tensile, hardness, flattening, flaring, corrosion, and hydrostatic.

Material of stainless steel hydraulic tubing

Autenitic Stainless steel:

TP304, TP304L, TP304H, TP316/TP316L, TP316H, TP316Ti, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.

Duplex&Super Duplex steel:

S31803, S32205, S32750, S32760.

Nickel alloy steel:

N06600, N06601, N06625, N07718, N08800, N08825, N010276, N04400, N05500, N08020, N08028

Stainless Hydraulic Tubing Standard

EN10216-5TC1, ASTM A789, BORN MR0175 / ISO 15156, ISO6207, ASTM B444 GRADE 1 & GRADE2, ASTM SB444 GRADE1 & GRADE2, ASTM B668, ASTM A213, ASTM A269, EN10216-5

Hydraulic Tubing Sizes

OD Range: 2.0mm--38mm

Wall Range: 0.08mm--5.00mm

Length: Cut to length by client request

Typical size & tolerence

Chemical Composition of Nickel Alloy, Duplex steel & Austenitic Steel
