Low ESR Winding type series
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Series name |
LR Series |
|
Type name |
LR-2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
1F~100F |
|
Operating temperature range |
-40 ~ +70℃ |
|
Product life |
Normal temperature cycle life：25℃,1 million cycles between VR and 1/2VR , Capacity attenuation≤30% ,ESR change≤4 times. |
|
High temperature endurance life：70℃, maintain VR ,1500 hours.Capacity attenuation≤30% ,ESR change≤4 times. |
Product performance list ：
LR 2.7V Series products
|
Model |
Capacity F |
ESR mΩ |

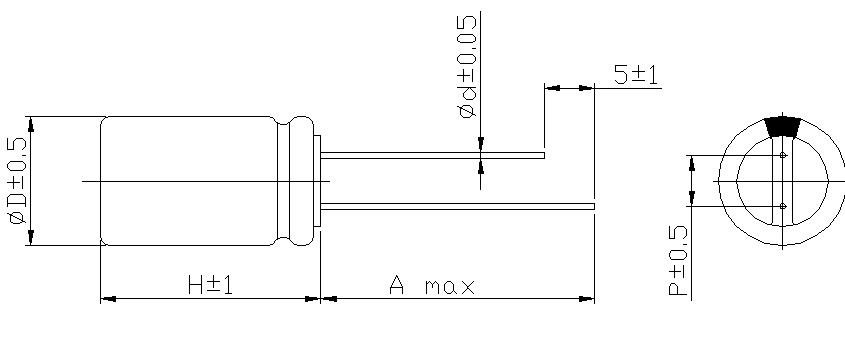

Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
LR-2R7-J254UYJ03 |
0.25 |
300 |
150 |
5 |
12 |
2 |
|
LR-2R7-J105VYJ06 |
1 |
170 |
85 |
8 |
13 |
3.5 |
|
LR-2R7-J205VYJ07 |
2 |
105 |
70 |
8 |
20 |
3.5 |
|
LR-2R7-J205VYJ08 |
2 |
105 |
70 |
8 |
16 |
3.5 |
|
LR-2R7-J205VYJ66 |
2 |
105 |
70 |
10 |
13 |
5 |
|
LR-2R7-J205VYJ13 |
2 |
105 |
70 |
10 |
20 |
5 |
|
LR-2R7-J335VYJ07 |
3.3 |
85 |
60 |
8 |
20 |
3.5 |
|
LR-2R7-J505UYJ04 |
5 |
60 |
40 |
8 |
24 |
3.5 |
|
LR-2R7-J505VYJ13 |
5 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705UYJ13 |
7 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705VYJ11 |
7 |
46.5 |
30 |
10 |
25 |
5 |
|
LR-2R7-805VYJ11 |
8 |
53 |
35 |
10 |
25 |
5 |
|
LR-2R7-J106VYJ12 |
10 |
55 |
25 |
10 |
30 |
5 |
|
LR-2R7-J106VYJ09 |
10 |
55 |
25 |
12.5 |
21 |
5 |
|
LR-2R7-J256UYJ21 |
25 |
25 |
17 |
16 |
26 |
8 |
|
LR-2R7-J107UYJ28 |
100 |
10 |
5.0 |
22 |
46 |
10 |
|
LR-2R7-J107UYJ29 |
100 |
10 |
5.0 |
25.4 |
40 |
10 |
|
LR-2R7-J127VYJ30 |
127 |
9.6 |
4.8 |
25.4 |
54 |
10 |
|
LR-2R7-J157VYJ30 |
157 |
9.2 |
4.6 |
25.4 |
54 |
10 |
|
LR-2R7-J227VYJ31 |
227 |
8.0 |
4.0 |
30 |
50 |
10 |
|
LR-2R7-J307VYJ32 |
300 |
7.0 |
3.5 |
35 |
54 |
10 |
|
LR-2R7-J367UYJ32 |
360 |
6.0 |
3.0 |
35 |
54 |
10 |
|
LR-2R7-J367VYJ32 |
367 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J407UYJ33 |
400 |
5.6 |
2.8 |
35 |
61 |
10 |
|
LR-2R7-J477VYJ33 |
470 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J507VYJ33 |
500 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J557VYJ75 |
550 |
5.6 |
2.8 |
35 |
70 |
10 |
|
LR-2R7-J607VYJ75 |
600 |
5.6 |
2.8 |
35 |
70 |
10 |
Typical Application
|
Series |
Application range |
Instance |
|
SP, LR, HP, HT |
Backup power |
RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
|
SE, HP, HE |
Energy storage |
Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
|
SE Coin type, HE |
Energy storage |
Flashlights, water meters, gas meters, taillights, small appliances, etc. |
|
HP、LR |
High power support |
Wind power, locomotive start, ignition, electric vehicles, etc. |
|
MK |
Backup power High current operation |
Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
