A variety of EDM brass wire
Détails
Chine (Rép. pop) Matières premières
Matières premières

A variety of EDM brass wire

Quantité : 300KG   Prix : 10,00 €

A variety of EDM brass wire

1. Grade: Cu/Zn
2.Model Number: 0.25mm, 0.30mm
3. Alloy Or Not: Is Alloy
4. Place of Origin: henan,China
5. Certification: Passed ISO9001: 2008 quality certificate
Passed ISO/TS16949: 2009 certificate
Passed GJB9001A-2001 military quality certificate.
6.Brand Name: Bashan

A variety of EDM brass wire

Product Name
A variety of EDM brass wire
Material
Material : CuZn35,CuZn37,CuZn40
Wire diameter
0.30mm, 0.25mm, 0.20mm,0.15mm,0.10mm
Weight/Spool
Weight/Spool: 3kg/5kg/7kg/15kg/20kg
Tensile strength:
1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2
Packing
Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Used
used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino

The Specification about A variety of EDM brass wire

Condition
Diameter(mm)
Tolerance(mm)
Tensile Strength (N/mm²)
Type of Spool
(Standard Weight)
Hard
0.10
±0.001
≥980
DIN125(3kg,3.5kg
0.15
±0.001
≥980
0.20
±0.001
≥980
DIN125(3kg,3.5kg)

p5(5kg)

DIN160(7kg,8kg)

DIN200(15kg,16kg)
0.25
±0.001
≥980
0.30
±0.001
≥980
Semi-hard
0.25
±0.001
480~520
0.30
±0.001
Soft
0.25
±0.001
380~420
0.30
±0.001

Reliable Raw Materials

Good and reliable raw material is the most important factor of producing excellent fine stainless steel wire. Bashan company use good raw materials from well-known iron manufacturers at home and abroad. Ugitech in France, Hikari Works in Japan, Tisco in China, D&B Special Steel in China, Ruipu in China, etc.

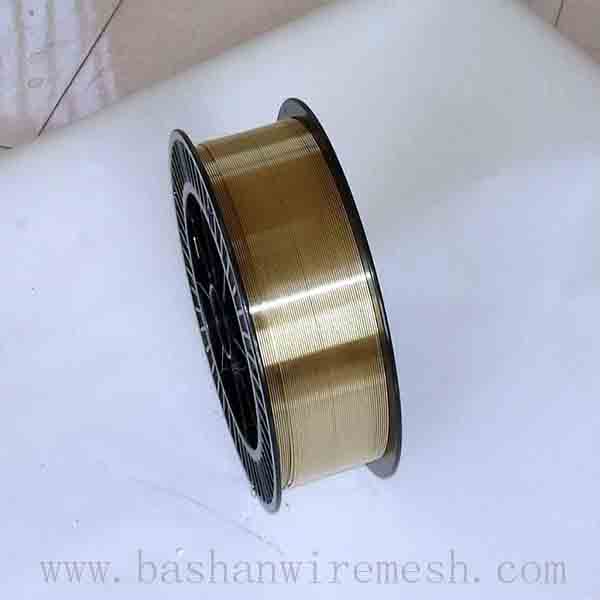

Products Show

Features of EDM brass wire

Top Quality Brass Copper Wire

1.High dimensional accuracy
2.Diameter tolerance is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.We test each spool for curling and torsion and pride ourselves on the stable automatic wire threading performance or our product.
5.Stable mechanical properties
6.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
7.Ultra-smooth surface

Localisation : No.5 Daoqing Rd, Xinxiang, Henan, 453000, China, 453700 henan,
Personne à contacter : Jane Yuan, +8603733091998
