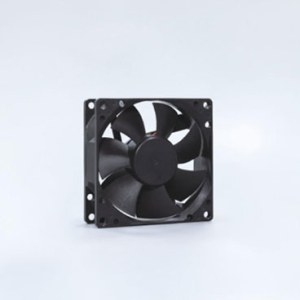

80-120mm DC Axial Fans
Prix : 5-500
WHEE DC axial fans are widely used in mechanical heat dissipation due to their advantages of good heat dissipation effect, long service life, simple structure and easy installation.
We offer quality DC axial flow fans from 80mm to 120mm. All our DC axial cooling fan are designed to meet UL, CUL and CE standards. Find specially designed axial fan supplied by the certified axial fans manufacturer from China.
80-120mm DC Axial Fans Functions
FG: FG Signal
RD: RD Signal
PWM: PWM Signal
VC: Voltage Control
TC: Temperature Control
80-120mm DC Axial Fans Specifications
|
BEARING TYPE |
F.D. Bearing /One ball /Sleeve bearing/ Two ball |
|
FRAME |
P B T. UL94V-0 |
|
IMPELLER |
P B T. UL94V-0 |
|
P C B |
UL94V-0 |
|
MATERIAL LIST |
RoHS Compliant |
|
OPERATING TEMPERATURE |
-10 ℃ ~ + 70 ℃ |
|
STORAGE TEMPERATURE |
-40 ℃ ~ + 70 ℃ |
|
DIELETRIC STRENGTH |
Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires. |
|
INSULATION RESISTANCE |
At least 10 MΩ at 500VDC between internal stator and both lead wires. |
|
LIFE EXPECTANCY |
30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient. |
80-120mm DC Axial Fans List
80*80*15 DC Axial Fans80*80*20 DC Axial Fans80*80*25 DC Axial Fans80*80*38 DC Axial Fans92*92*25 DC Axial Fans92*92*38 DC Axial Fans120*120*25-1 DC Axial Fans120*120*25-2 DC Axial Fans120*120*25-3 DC Axial Fans120*120*25-4 DC Axial Fans120*120*38-1 DC Axial Fans120*120*38-2 DC Axial Fans120*120*38-3 DC Axial Fans
Dongguan Wanhang Electronics Technology Co, Ltd. is a professional industrial cooling fan manufacturers. We provide DC Micro Fans, DC Micro Blowers, cooling fan china, axial fan dc 24v 80x80mm, 120mm axial fan and so on. Want to know more? Please contact us.
