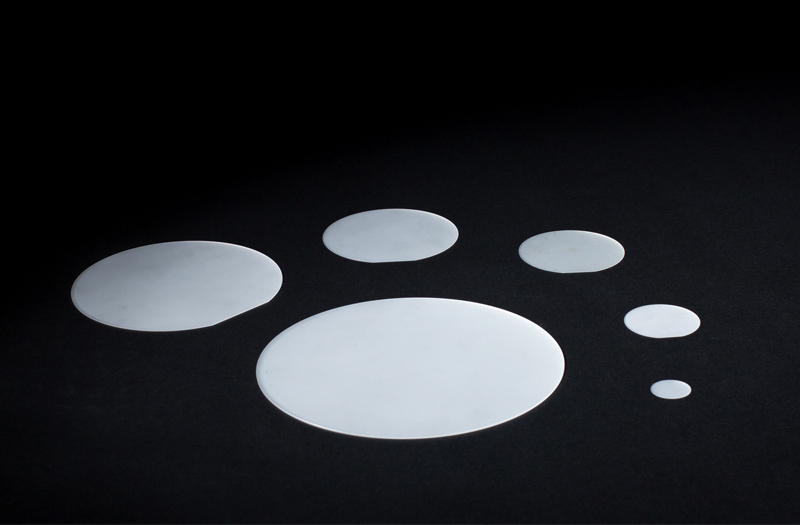

8 INCH C-PLANE(0001) SAPPHIRE WAFERS
8 INCH C-PLANE(0001) SAPPHIRE WAFER
The 8-inch sapphire wafers can enable chip makers to roll out more productivity, which will help them drive down costs dramatically.
CRYSCORE is qualified to supply 8-inch epi-ready sapphire wafers. The common thickness is 1300 μm and 1500 μm.
Generally, this series of polished sapphire wafer has a notch instead of a major flat, but flat with custom length is also available. Our sapphire wafers are cleaned in class 100 cleanroom by ultrapure water with quality above 18MΩ *cm, and then packed in clean cassettes.
Specifications of 8 Inch C-plane(0001) Sapphire Wafers
|
Item |
8-inch C-plane(0001) 1300μm Sapphire Wafers |
|
|
Crystal Materials |
99,999%, High Purity, Monocrystalline Al2O3 |
|
|
Grade |
Prime, Epi-Ready |
|
|
Surface Orientation |
C-plane(0001) |
|
|
C-plane off-angle toward M-axis 0.2 +/- 0.1° |
||
|
Diameter |
200.0 mm +/- 0.2 mm |
|
|
Thickness |
1300 μm +/- 25 μm |
|
|
Single Side Polished |
Front Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
(SSP) |
Back Surface |
Fine ground, Ra = 0.8 μm to 1.2 μm |
|
Double Side Polished |
Front Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
(DSP) |
Back Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
TTV |
< 30 μm |
|
|
BOW |
< 30 μm |
|
|
WARP |
< 30 μm |
|
|
Cleaning / Packaging |
Class 100 cleanroom cleaning and vacuum packaging, |
|
|
25 pieces in one cassette packaging or single piece packaging. |
||
Note: Custom sapphire wafers with any orientation and any thickness can be provided.
CRYSCORE OPTOELECTRONIC LIMITED has been a professional manufacturer specialized in high-quality sapphire wafers and optical windows since 2008. We provide sapphire optics, sapphire rod, sapphire ingot, Al2O3 substrate and etc. Want to know sapphire wafer price or more? Please contact us.
Personne à contacter : Zhu Wind, +86 0391 393 3936
