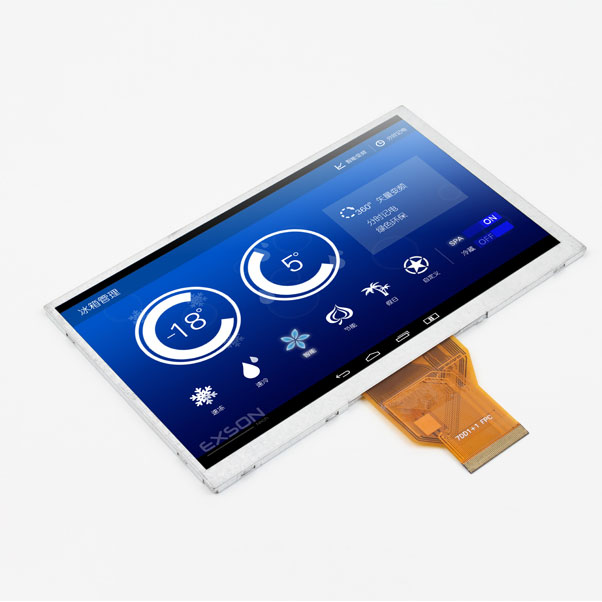

7.0 Inch 800x480 WVGA 50PIN TTL TN 350nits TFT LCD Display Module
This single-display module is suitable for use in Automobile products.EX07015-A01 is a 7.0 inch, TTL TN TFT LCD module . The module dimension is 165.00(W)×100.00(H); active area 154.08(W)×85.92(H) mm (7.0"diagonal). Its resolution is 800x480 pixels (width 800pixels x height 480 pixels) . This 7 inch lcd display screen module has built-in IC EK9713CA supporting TTL interface. The brightness is 350 cd/m2 . Operating temperature covers from -20~+60℃, storage temperature range is from -20~+65℃.
General 7.0 Inch 800x480 WVGA 50PIN TTL TN 350nits
|
Item |
Specifications |
|
LCD size |
7.0 inch |
|
Resolution |
800 x3(RGB)X480 |
|
Active area |
154.08 (W)X85.92 (H) mm |
|
Module size |
165.00 (W)X100.00(H)X3.5(D) mm |
|
Contrast Ratio |
500: 1 |
|
Display mode |
Normally White |
|
Interface |
RGB |
|
Brightness |
350cd/m2 |
|
Pixel arrangement |
RGB-vertical stripe |
|
Driver IC |
EK9713CA & EK73002ACGB |
|
Viewing angle |
6 o'clock |
|
Polarizer |
Transmissive |
If you want to know more kinds of 7 lcd display, please visit our website.
Shenzhen EXSON technology Co.Ltd is a leading professional high-tech tft lcd screen factory which provides ODM/OEM TFT LCD and LCM, Touch Panel (Resistive TP/ Capacitive TP), industrial HMI Software and Hardware developing, design, production and sales.
