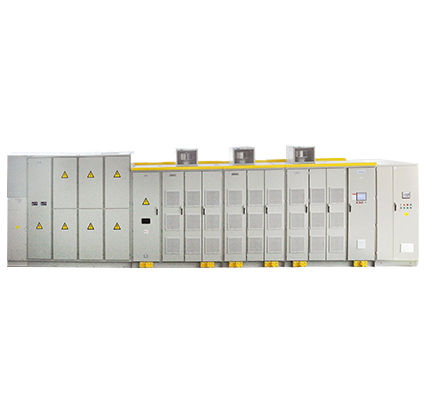

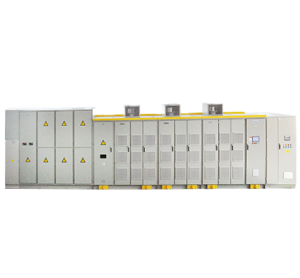

6kV/630~12500kW Water-cooled Medium Voltage Drive
Prix : 100,000 ~5,000,000
Whatever your industry is, Hiconics's medium voltage drive could be an all-rounder to control your standard applications and optimize your processes. Tailor the drive to your specific application by selecting from an extended choice of pre-engineered options. Extensive versatility makes our VFD suitable for operations in different conditions and environments, even hazardous areas. High reliability in your daily business is ensured by the drive's simple design and robust control platform that has proven itself over many years.
Technical Parameters of 6kV/630~12500kW Water-cooled Medium Voltage Drive
|
Voltage |
Motor Power(KW) |
Output Capacity(KVA) |
Model |
Weight |
Dimension |
Cabinet Type |
|
(kg) |
(W*H*D) |
|||||
|
6kV |
630 |
800 |
HIVERT-Y/T 06/077W |
5450 |
5000×1200×2200 |
LAW2.1 |
|
800 |
1000 |
HIVERT-Y/T 06/096W |
5600 |
5800×1200×2200 |
LCW2.1 |
|
|
1000 |
1250 |
HIVERT-Y/T 06/130W |
5800 |
|
|
|
|
1250 |
1600 |
HIVERT-Y/T 06/154W |
7050 |
5850×1200×2300 |
LAW3.1 |
|
|
1400 |
1800 |
HIVERT-Y/T 06/173W |
7350 |
|||
|
1600 |
2000 |
HIVERT- Y/T 06/192W |
7660 |
|||
|
1800 |
2250 |
HIVERT- Y/T 06/220W |
7960 |
|||
|
2000 |
2500 |
HIVERT- Y/T 06/243W |
8310 |
|||
|
2250 |
2800 |
HIVERT- Y/T 06/275W |
10410 |
7500×1400×2400 |
LAW4.1 |
|
|
2500 |
3200 |
HIVERT- Y/T 06/304W |
10760 |
7870×1400×2400 |
LCW4.1 |
|
|
2800 |
3500 |
HIVERT- Y/T 06/340W |
11170 |
|
|
|
|
3200 |
4000 |
HIVERT-Y/T 06/400W |
11700 |
|
|
|
|
3600 |
4500 |
HIVERT-Y/T 06/425W |
15240 |
9300×1600×2400/2800 |
LAW5.1 |
|
|
4000 |
5000 |
HIVERT- Y/T 06 /500W |
15790 |
9700×1600×2400/2800 |
LCW5.1 |
|
|
5000 |
6300 |
HIVERT- Y/T 06 /600W |
17290 |
|
|
|
|
5600 |
7000 |
HIVERT- Y/T 06 /660W |
17800 |
9500×1600×2400 |
LAW6.1 |
|
|
6300 |
8000 |
HIVERT- Y/T 06 /750W |
18670 |
10000×1600×2400 |
LCW6.1 |
|
|
6600 |
8250 |
HIVERT- Y/T 06 /800W |
19000 |
|
|
|
|
8000 |
10000 |
HIVERT-Y/T 06/960W |
27500 |
10000×1800×2400/2800 |
LAW7.1 |
|
|
30250 |
10450×1800×2400/2800 |
LCW7.1 |
||||
|
10000 |
12500 |
HIVERT-Y/T 06/1200W |
38500 |
13800×1800×2400/2800 |
LAW8.1 |
|
|
42000 |
14440×1800×2400/2800 |
LCW8.1 |
||||
|
12500 |
15650 |
HIVERT-Y/T06/1250W |
10070 |
|
|
Specification of 6kV/630~12500kW Water-cooled Medium Voltage Drive
|
Item |
Parameters |
|
VFD rated power |
210~28000kVA※ |
|
Rated voltage |
3.3kV~11kV(-20%~+5%)※(Out of range, special instructions required) |
|
Rated Frequency |
50Hz/60Hz(-10%~+10%)※ |
|
Control Power |
380VAC, 30kVA |
|
Rated input power factor |
≥0.96 |
|
Effciency |
＞96% |
|
Output frequency range |
0~80Hz※ |
|
Speed accuracy |
±0.5%(Open loop vector) ±0.1%(close loop vector) |
|
Instantaneous over-current protection |
150%( Can be customized according to user requirements) |
|
Over capacity |
120% load for 120s |
|
Torque limitation |
10%~150% |
|
Analog input |
3 ways 4~20mA/Excitation feedback 4~20mA(Customized) |
|
Analog output |
4ways 4~20mA |
|
Host communication |
Isolated RS485 interface, ModBus RTU, Profibus DP(optional), Industry Ethernet |
|
Acceleration and deceleration time |
5s~6000s ( related to load) |
|
DI |
14 inputs/22 outputs (Output 8 ways can be defined) |
|
Environment temperature |
-5~+45℃※ |
|
Storage/transportation temperature |
-25~+55℃※ |
|
Cooling methord |
Air forced cooling (AF) / Water cooled (WF)/Air forced water cooled (AFWF) |
|
Humidity |
<95%, no condensation</span> |
|
Altitude |
≤1000m, when altitude is higher than 1000m, each 100 meter increasing needs 1% |
|
derating of VFD |
|
|
Dust |
Non-conductive, no causticity, ＜6.5mg/dm3※ |
|
Protection level |
IP30※ |
|
Cabinet colors |
RAL 7032(customized) |
China Variable Frequency Drive Application Industries and Fields
HIVERT Standard medium voltage VFD device series is widely used in various fields in national economy, exported to Europe, Middle East, Southeast Asia etc.. Perfect solutions for soft start, speed adjusting, energy saving and intelligent control of medium voltage AC motors (including synchronous and asynchronous motors) could be supplied to customers. Typical application industries are:
Now the price of water cooler ac is low, if you are interested, please contact us.
