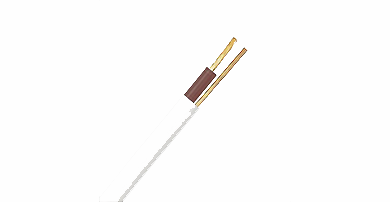

6241B LSZH Single Cores +Earth Cable

As a China electric wire manufacturer and control cable supplier with over 20 years of knowledge in the cables industry, we supply reliable cables worldwide. We have all the necessary cable facilities to produce the cable in house without sourcing some processing outside to guarantee the quality.

6241B LSZH Single Cores +Earth Cable

Cu/LSZH/LSZH 6241B are the electric cables referred to thermosetting insulated and thermoplastic sheathed cables for voltage 300/500V electric power and lighting and having low emission of the smoke and corrosive gases when affected by the fire.

  1. B refers to thermosetting insulated and sheathed cables, single-core 6241B, flat twin-core 6242B, flat 3-core 6243B, with circuit protective conductor (CPC) 300/500V. The conductor is annealed copper conductor of class 1 or class 2. The maximum size is up to and including 16 mm². As one of the flexible flat cable suppliers, we supply the cables according to BS7211.

6241B LSZH Single Cores +Earth Cable Parameter

No. of Cores x Nominal Cross-Sectional Area

Nominal thickness of insulation

Nominal thickness of sheath

Nominal overall dimensions

Circuit protective conductor

Nominal Weight

Minimum insulation resistance at 90 °C

# x mm²

mm

mm

lower limit mm

upper limit mm

AWG

kg/km

MΩ·km

1 × 1.0

0.7

0.9

4.1 × 5.2

5.0 × 6.3

17

45

0.011

1 × 1.5

0.7

0.9

4.4 × 5.4

5.3 × 6.6

17

55

0.011

Description Of 6241B LSZH Single Cores +Earth Cable

  1. Rated voltage: 300/500v
  2. Test voltage: 2000 volts
  3. Max Flexing bending radius: 15 x Ø
  4. Operating temperature: +5 ºC to +90 ºC
  5. Short circuit temperature: +250 ºC
  6. Flame retardant standard: IEC 60332.1
  7. Smoke density acc. to EN 50268 / IEC 61034
  8. Flame test and Flame-retardant according to EN 50265-2-1, IEC 60332.1

Application Of 6241B LSZH Single Cores +Earth Cable

6241 B LSZH cables are widely used in domestic and industrial power or lighting system. They normally installed in conduit and trunking or can be surface nounted if used as earth cable. They are good options for using in public buildings to reduce the threat to life and equipment cased by smoke and toxic fumes. They can't be installed incontrete without mechanic protection.
