5.5V Waterproof Supercapacitor
Quantité : 100000/day

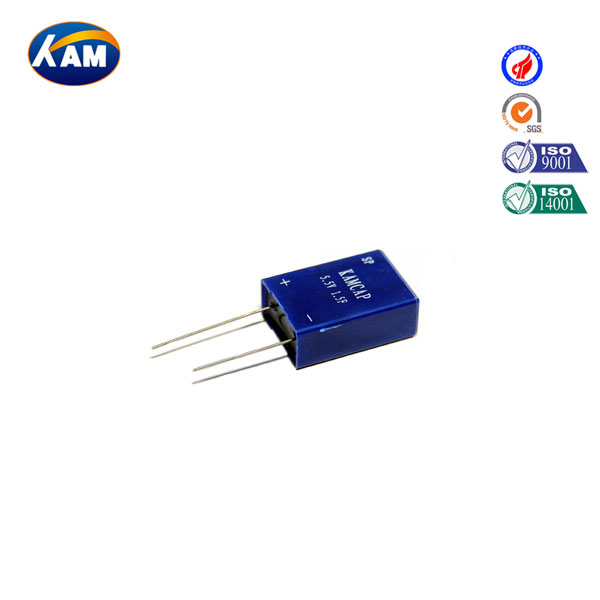

Brief Introduction of Kamcap 5.5 V 1.0 F Sealed Supercapacitor
SE Series Performance characteristics: Standard energy series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SP Series Performance characteristics: Standard power series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Kamcap super capacitor supplies different types of supercapacitors, all of which are of high-quality and good prices. Contact us if you need more product information!
Specification and Drawing of 5.5V Waterproof Supercapacitor
|
Series name |
SP Two series |
SP Three series |
SE Seires |
|
|
Type name |
SP -5R5 |
SP -7R5 |
SE -5R0 |
SE -5R5 |
|
Rated voltage |
5.5V |
7.5V |
5.0V |
5.5V |
|
VR |
||||
|
Surge voltage |
5.8V |
7.8V |
5.3V |
5.8V |
|
Capacity range |
0.1F~1.5F |
0.33F~1.0F |
0.33F~0.47F |
0.33F~7.5F |
|
Operating temperature range |
-40 ~ +70℃ |
-40 ~ +70℃ |
-25~ +70℃ |
-25~ +70℃ |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|||
|
High temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
||||
Key Features of 5.5V Fully Sealed Supercapacitor
SE-5R0, 5R5 Resin potting structure
|
Model |
Capacity |
ESR mΩ |
Product size（mm） |
||||
|
F |
DC |
AC |
Width |
Length |
Height |
Pin distance |
|
|
|
1kHz |
±1 |
±1 |
±1 |
|||
|
|
|
|
|
|
|||
|
SE-5R0-Z224VYA16 |
0.22 |
2400 |
1200 |
8 |
14.6 |
13.5 |
9 |
|
SE-5R5-Z224VYA16 |
0.22 |
2400 |
1200 |
8 |
14.6 |
13.5 |
9 |
|
SE-5R0-Z474VYA06 |
0.47 |
2400 |
1200 |
9.6 |
18.1 |
18 |
11.5 |
|
SE-5R5-Z474VYA06 |
0.47 |
2400 |
1200 |
9.6 |
18.1 |
18 |
11.5 |
|
SE-5R0-Z105VYA13 |
1 |
1000 |
500 |
11.6 |
22 |
25.5 |
15.3 |
|
SE-5R5-Z105VYA13 |
1 |
1000 |
500 |
11.6 |
22 |
25.5 |
15.3 |
|
SE-5R5-Z105VYA07 |
1 |
1000 |
500 |
9.6 |
18.1 |
25.5 |
11.5 |
|
SE-5R5-Z155TYA07 |
1.5 |
1000 |
500 |
9.6 |
18.1 |
25.5 |
11.5 |
|
SE-5R5-Z155VYA13 |
1.5 |
800 |
400 |
11.6 |
22 |
25.5 |
15.3 |
SP -5R5（Resin potting structure）
|
Model |
Capacity |
ESR mΩ |
Product size（mm） |
||||
|
F |
DC |
AC |
Width |
Length |
Height |
Pin distance |
|
|
|
1kHz |
±1 |
±1 |
±1 |
|||
|
|
|
|
|
|
|||
|
SP-5R5-Z104VYA01 |
0.1 |
2400 |
1200 |
6.6 |
12 |
13.5 |
7 |
|
SP-5R5-Z224VYA16 |
0.22 |
1400 |
700 |
8 |
14.6 |
13.5 |
9 |
|
SP-5R5-Z334VYA06 |
0.33 |
1200 |
600 |
9.6 |
18.1 |
18 |
11.5 |
|
SP-5R5-Z474VYA06 |
0.47 |
1200 |
600 |
9.6 |
18.1 |
18 |
11.5 |
|
SP-5R5-Z105VYA13 |
1 |
480 |
240 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z105VYA07 |
1 |
520 |
260 |
9.6 |
18.1 |
25.5 |
11.5 |
|
SP-5R5-Z155TYA07 |
1.5 |
480 |
240 |
9.6 |
18.1 |
25.5 |
11.5 |
|
SP-5R5-Z155VYA13 |
1.5 |
280 |
140 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z205VYA13 |
2 |
280 |
140 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z255VYA13 |
2.5 |
360 |
180 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z305VYA13 |
3 |
300 |
150 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z355VYA13 |
3.5 |
320 |
160 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z405VYA13 |
4 |
320 |
160 |
11.6 |
22 |
25.5 |
15.3 |
|
SP-5R5-Z505VYA11 |
5 |
200 |
100 |
11.6 |
22 |
30.5 |
15.3 |
SP -7R5（Resin potting structure）
|
Model |
Capacity |
ESR mΩ |
Product size（mm） |
||||
|
F |
DC |
<span style="font-s |
|||||
