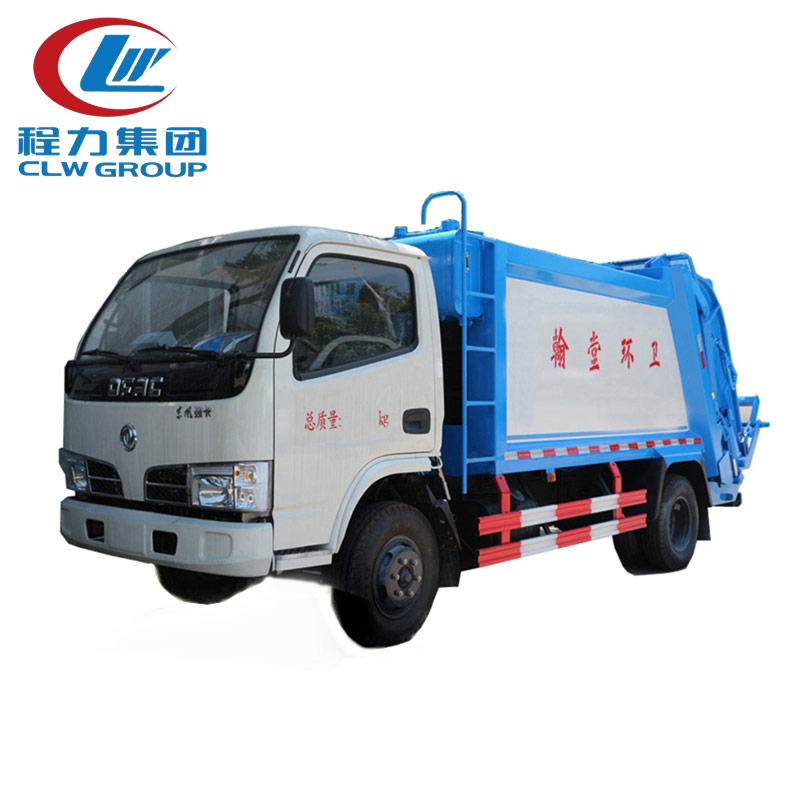

4X2 Dongfeng 5CBM Garbage Compactor Trucks

Quantité : 30000 Unit   Prix : 5000-50000USD

Compactor garbage truck, also called compressed garbage truck. The compression type garbage truck is composed of a sealed garbage bin, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self compression, self dumping and compression is all entered into the sewage tank. The two pollution problems in the process of garbage transportation are thoroughly solved, and the inconvenience is avoided. The key components are imported, which have high pressure, good sealing, convenient operation and safety. It can be equipped with a bucket turnover mechanism or a garbage bucket turnover mechanism.

CLW has Dongfeng compression type garbage truck, Dongfeng 140/145/153/1208, 2 rear , Dongfeng Tianjin compressing garbage truck. We also have Foton, Forland, Faw, etc. Affordable garbage compactor truck price for you.

The advantage of4X2 Dongfeng 5CBM Garbage Compactor Truck

1. Simple garbage collection method;

2. High compression ratio and large load;

3. Automation: the use of computer control system can set 2 modes of automatic and semi-automatic operation, which can not only reduce the labor intensity of the sanitation workers, but also greatly improve the working environment;

4. Good economy: when the special equipment works, the computer control system controls throttle automatically;

5. Double insurance system: the operation system has dual functions of computer control and manual operation, so as to greatly protect and improve the utilization rate of vehicles;

6. Turnover device: optional turnover device with garbage bucket or hopper.

4X2 Dongfeng 5CBM Garbage Compactor Truck Specification

Overall Dimension

5895 x2045x2210mm

CurbWeight

3550kg

Wheel Base

3300 mm

Cabin

3 Passengers Allowed, with AirConditioner, Radio,

Engine

Yuchai EngineYC4F115-30

Engine horsepower

115HP, EUROIII

Displacement

2.659L

Max Driving Speed

90 km/h

Gear Box

6 Forward Gear, 1 Reverse Gear,

Tire

7.00R16(6 pieces with one spare)

Garbage Bin

Capacity

5 CBM

Material

4mm Carbon Steel for Garbage Bin Body

Design

Whole unit with Leakage Proof Design

Ways of Loading

Rear Loading with optional Bucket Lifting System

Plat Form

2 side for 2 worker for foot transport

Garbage Compact Ratio

1/3 - 1/4

Control System

One control Panel on the back, One Control system in back of Cabin

Main structure

1.Equipped with air-tight dustbin, hydraulic system and operating system.

2.Automatic loading, compressing anddischarging, all handled by 1 person

3. Sewage water collection tank to avoid any pollution during handling.

4. LargePressure,Good Leakage Proof,Convenient Operation

Dependable Security

5. Electrical Control Panel for compacting system.

6.Cycling time15s

Localisation : Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China, 430000 HuBei,
Personne à contacter : Yuki Wang, +18 8 58 01 19 48
