4T Telescopic Forklift
Prix : 50-150000 USD
We are professional 4T Telescopic Forklift supplier and factory in China. We can produce the product according to your requirements.
Telescoping Forklift Introduction

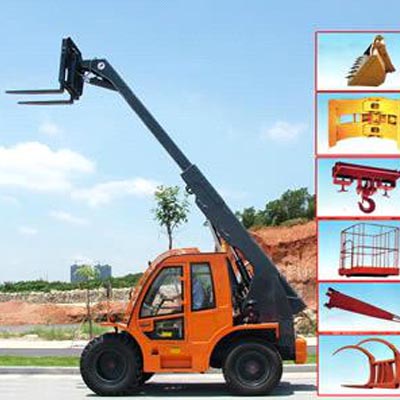

SCZ40-4 Type Electric Telescopic Forklift Loader, which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move. Could use to pull in & out the box on the container, also for loading and unloading, Cargo stowing and short-haul handing.
This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining, Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook , the suspend arm and so on each kind is differently for the customer's choice to install. Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.
Parameters
Telescoping Forklift Specifications:
|
Max Hoisting Weight (with fork) |
4000kg |
||||||
|
mm/KgThe Distance of Load Center(Tyre-fore to load center of hook)/ Hoisting Weight (with hook) |
mm |
3500 |
4000 |
4500 |
5000 |
5500 |
|
|
Kg |
3000 |
2750 |
2500 |
2250 |
2000 |
||
|
Max.Lifting Height of Main Hook(Main hook to ground) |
front suspension point |
upper face of fork |
|||||
|
9200mm |
6250mm |
||||||
|
Max Horizontal Reach |
Tyre-fore to Frong Lifting Point |
Tyre-fore to Vertical Segment of Fork |
|||||
|
5500mm |
3200mm |
||||||
|
Max.Traveling Speed |
30km/h |
||||||
|
Min.Ground Clearance |
350mm |
||||||
|
Min.turning Radius |
7250mm |
||||||
|
Grade Ability |
≥20% |
||||||
|
The Angle of Lean Up/Down |
15°/25° |
||||||
|
Tread |
1900mm |
||||||
|
Wheel base |
2520mm |
||||||
|
Deadweight |
9440kg |
||||||
|
Overall Dimension (L×W×H)(Except the tools) |
5400mm×2280mm×2700mm |
||||||
|
Engine (Dongfeng Cummins) |
Type |
4BT3.9-C80 |
|||||
|
Rated power |
60kw |
||||||
|
Rated speed |
2000r/min |
||||||
|
Exhaust |
3.9L |
||||||
|
Tyre |
Front wheel |
16/70-24(14PR) |
|||||
|
Rear wheel |
10.00-20(14PR) |
||||||
