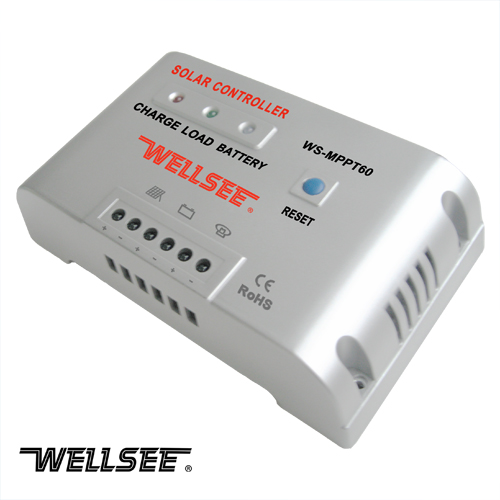

48V 60A MPPT Solar Controller WS-MPPT60

Brand:	WELLSEE	Size:	210*125*50mm
products name:	solar controller	Weight:	1100g
Model:	WS-MPPT60 48V 60A	Package:	16pc/ctn

WS-MPPT60 60A solar controller (also known as WELLSEE intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, MPPT controller can increase the efficiency of PV modules by 10%-30%. WELLSEE WS-MPPT solar controllers 10A--60A include 12V series, 24V series and 48V series.

MPPT advantage:

Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. the ordinary controller, which makes PV battery work on 12V ,only outputs power of 53W (a general power point); MPPT controller makes PV battery always work at the maximum power point, thus outputs power of 75W (the maximum power point).

MPPT principle:

The maximum power point is mainly affected by the ambient temperature and the intensity of sunshine. This WS-MPPT solar controller can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by about 30%.

Product features:

1. Applicable to various types of batteries,
2. MPPT function
3. Temperature sensor battery charging compensation
4. Overload protection (automatic restoration)
5. Overcharge protection
6. Short circuit protection (automatic restoration) ,
7. Thunder protection
8. Reverse discharge protection
9. Reverse polarity connection protection (automatic restoration)
10. Under voltage protection

Technical Index:

1. Model: WS-MPPT60
2. Rated Voltage: 48V
3. Max load current: 60A
4. Input Voltage: 48V-110V
5. Length≤1m,Charge loop drop: ＜0.25V
6. Length≤1m,Discharge loop drop: ＜0.15V
7. Over voltage protection: 68V
8. Full charge cut: 54.8V
9. Low voltage cut: 42V
10. Temperature compensation: -3mv/℃/cell
11. No load loss: ≤30mA
12. Max wire area: 12 mm2
13. Ambient temperature: -25℃——+55℃

We are the super-scale research and development enterprise for solar charge and discharge controller, the supplier of WELLSEE solar controller, photovoltaic system equipment.WELLSEE have passed the ISO9001, CE and RoHS certifications. We can design and produce according to clients' special request. Welcome to be our agents！
