40km Dispersion Compensation Fiber
In optical fiber communications, dispersion compensation modules (DCM) (also called dispersion compensation units, DCU) can be used for compensating the chromatic dispersion of, e.g., a long span of transmission fiber.
Typically, such a module provides a fixed amount of dispersion (e.g. normal dispersion in the 1.6-μm spectral region), although tunable dispersion modules are also available.
A module can easily be inserted into a fiber-optic link because it has fiber connectors for the input and output. The insertion losses may be compensated with a fiber amplifier, e.g. an erbium-doped fiber amplifier in a 1.5-μm telecom system. A dispersion-compensating module is often placed between two fiber amplifiers.
40km Dispersion Compensation Fiber Dispersion Compensation Principle
Dispersion is one of the transmission properties of the optical fiber, and the optical pulse signal will be broadened in time after transmission in the optical fiber for a distance, which produces inter-symbol interference, thus increasing the error rate and affecting the quality of communication.
The higher the data rate is, the more easily the inter-symbol interference will present.
The longer the transmission distance is, the more easily the inter-symbol interference will present.
40km Dispersion Compensation Fiber Feature
100% slope compensation of G.652 fiber in C-band ( Typical )
Low insertion loss
Low polarization mode dispersion
Wideband dispersion compensation
Compensation up to 40 km
Completely passive—no powering utilized
Telcordia GR-2854-CORE, ROHS compliant

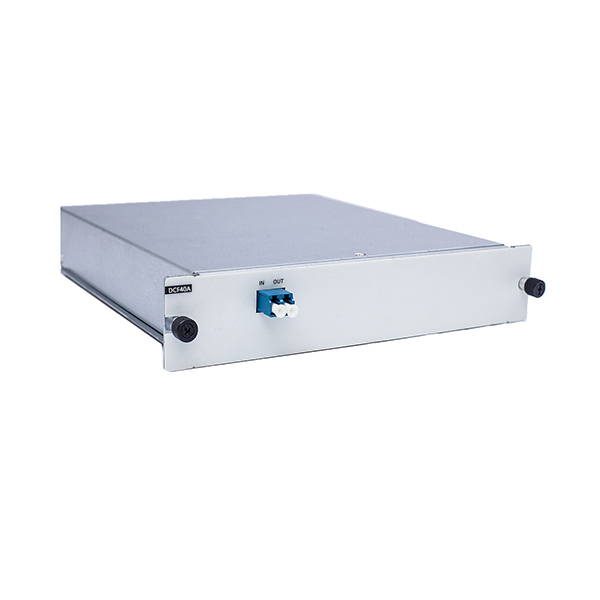

40km Dispersion Compensation Fiber Specification
Product Model |
DCF40A |
Equivalent G.652 compensation length |
40km |
1545nm wavelength dispersion(ps/nm) |
-670±30 |
1545nm wavelength relative dispersion slope |
0.004±20%(nm-1) |
Insertion loss |
≤4.8 dB |
Polarization mode dispersion |
≤0.9 ps |
Nominal single-wave input optical power |
≤0 dBm |
Optical interface |
All interfaces are LC type |
Typical power consumption |
0W (passive components) |
MTBF |
> 200000 hours |
Occupied slot number |
2 slots (dispersion compensation board over 40km need to be configured individually with the DCF passive frame) |
As a professional wdm optical transceivers supplier, we provide china optical, dwdm transponder, edfa amplifier and etc. For more information about dispersion compensating fiber pdf and dispersion compensation techniques, please feel free to contact us!
