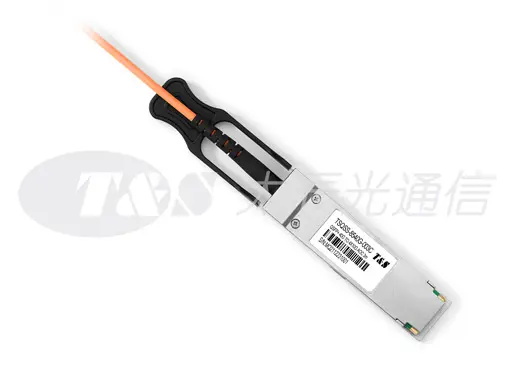

40G QSFP+BREAKOUT AOC
T&S Communication TSQSS-8540G-xxxC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+SR4 for 40 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 10Gbps up to 300 m using OM3 fiber. As a professional AOC factory in China, T&S mainly designs these modules to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector.
Features of China 40G QSFP+ Breakout AOC
Electrical interface compliant to SFF-8436 and SFF-8431
850nm VCSEL laser and PIN photo-detector
Built-in digital diagnostic functions
Operating case temperature 0℃ to 70℃
Similar to the 40G AOC produced by T&S, this AOC qsfp breakout series is also hot Pluggable
RoHS compliant
Applications of 40G QSFP+Breakout AOC
40GbE and 10GbE break-out applications for Datacom switch and router connections
40G to 4×10G density applications for Datacom and Proprietary protocol applications, Datacenters
Specifications of 40G QSFP+Breakout AOC
Absolute Maximum Ratings
Recommended Operating Conditions
Transmitter Specifications
Receiver Specifications
Parameter |
Symbol |
Min |
Max |
Unit |
Storage Temperature |
TS |
-20 |
85 |
℃ |
Relative Humidity |
RH |
0 |
85 |
% |
Case Operating Temperature |
TCase |
0 |
70 |
℃ |
Supply Voltage |
VCC |
-0.5 |
3.6 |
V |
Now the price of china 40g qsfp+ aoc cable is reasonable, if you have needs to buy high quality china 40g qsfp+ dac cables, please contact us.
If you are looing for a reliable fiber optic products supplier, please choose us, and we will be your best partner.
