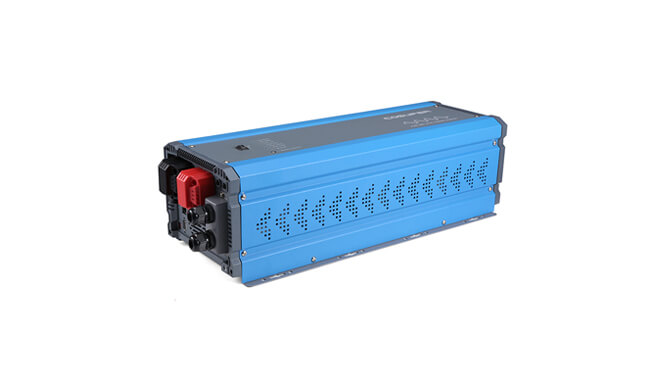

4000W PURE SINE WAVE INVERTER CHARGER
The Cosuper CPT4000 watt pure sine inverter charger is a 3-in-1 power solution system that combines an inverter, battery charger and AC automatic transfer switch. This 4000W pure sine wave inverter provides pure sine waves and seamlessly connects to the grid. When the grid disconnects, switch to inverter battery less than 8ms, suitable for sensitive loads, such as computers, medical devices and other sensitive electronic equipments. When the grid is available, the 4000W pure sine wave inverter will automatically switch to grid and recharge the battery, which is a perfect backup power option.
This 4000W inverter charger is an excellent alternative to generator power with no fumes, fuel or excess noise.
FEATURES OF 4000W PURE SINE WAVE INVERTER CHARGER
This kind of DC to AC inverter charger has a 4000W pure sine wave
Internal transfer switch transfers between DC power and utility power
External LCD remote control panel PTM-12 allows the control from a remote and Re-programmable Interactive Display Control System -CR80 for easy data reading
Power Saving Mode helps preserve battery capacity over long period of no operation
Approved by ETL under UL458 and CSA C22.2, CE under EN55022: 2006+A1: 2007 standards
TECHNICAL SPECIFICATIONS OF 4000W PURE SINE WAVE INVERTER CHARGER
|
Models |
CPT4000 |
|
Output Power |
4000W |
|
Surge Power |
12000W |
|
Output Voltage |
100/110/120VAC±5%;220/230/240VAC±3%;120/240VAC Split phase |
|
Output Frequency |
50/60Hz±0.5% |
|
Idle Consumption(Saving mode/working mode) |
9W/20W |
|
Output Waveform |
Pure sine wave(THD<5%)</span> |
|
AC Input Range |
90~135VAC/165~265VAC |
|
AC Input Frequency |
50/60Hz±0.5% |
|
DC Input Voltage |
24/48VDC |
|
DC Voltage Range |
20.0-31.0 / 42.0-62.0 VDC |
|
Efficiency |
110VAC | 88% |
|
230VAC | 90% |
|
|
AC Charger/Bypass |
|
|
DC Output Voltage |
Bulk(13.0-14.9V); Absorption(14.9-15.1V); |
|
Float charge(13.3-13.8V)(24V*2,48V*4) |
|
|
Overcharge Protection |
15.7VDC(24V*2, 48V*4) |
|
Charge Current |
110VAC | 50A/30A |
|
230VAC | 65A/35A |
|
|
Transfer Time |
≤10ms |
|
Input Waveform |
Pure sine wave(Utility power or generator) |
|
MAX Bypass Current |
40A |
|
Control & Signal |
|
|
LED Indicator |
7-led for working mode |
|
Remote Control(optional) |
CR10; PTM-12 |
|
Dip Switch |
Charge current; Output frequency; ACoutput voltage; DC/AC priority |
|
Network Function |
Stand-alone, orTCP/IP optional |
|
Battery Type |
Lithium, Gel, AGM, Wet or customized |
|
Dry Contact Terminal |
By relay |
|
General Specification |
|
|
Safety |
UL458, LVD(EN60950) |
|
EMC |
FCC part 15ClassA,CE(EN55022: 2006+A1: 2007) |
|
Operating / Storage temp |
-20-50℃/-30-70℃ |
|
Working Humidity |
-20-90%RH |
|
Weight(Kg/Ib) |
35/77 |
|
Dimension(mm/inch) |
650*250*185/ 26*10*7 |
|
Application |
Mobile vehicle, Yacht, Solar powe rsystems, Portable equipment, Powertools, Home and Office appliances |
There are many inverter charger suppliers, but we are one of the best choices for you.
