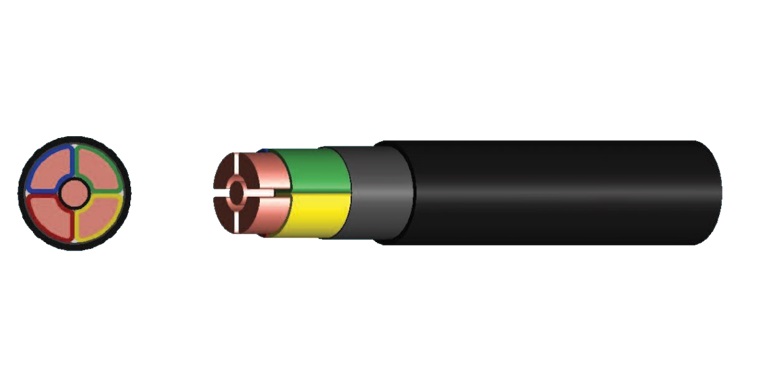

4 Cores +Earth Power Cable (XLPE Insulated)

The structure of 10mm 4 core and earth cable+1 earth is designed for application where the earth wires are required according to customer requirements. These 4 core and earth cable are often referred 16mm xlpe 4 core +1 cables XLPE insulated with voltage 0.6/1000v or IEC60502 4 core and earth cable.As one of leading XLPE cable manufacturers China, Jenuin offer cost-effective4mm/6mm/10mm/16mm 4 core earth cable made of high-quality material, feel free to contact!

4 Cores +Earth Power Cable (XLPE Insulated) Characteristics

Cross-sectional Area (mm2) No.&diameter of wire (N/mm) Average overall diameter (mm) Reference weight (kg/km)

4x1.5+1x1.0 1/1.38, 1/1.13 13.9 257

4x2.5+1x1.5 1/1.78, 1/1.38 14.9 322

4x4.0+1x2.5 7/0.85, 7/0.67 17.1 446

4x6.0+1x4.0 7/1.04, 7/0.85 18.4 567

4x10+1x6.0 7/1.35, 7/1.04 20.8 806

4x16+1x6.0 7/1.70, 7/1.04 23.0 1087

4x16+1x10 7/1.70, 7/1.35 23.5 1142

4x25+1x10 7/2.14, 7/1.35 26.8 1601

4x25+1x16 7/2.14, 7/1.70 27.3 3552

4x35+1x10 19/1.53, 7/1.35 29.8 2066

4x35+1x16 19/1.53, 7/1.70 30.3 2137

Description Of 4 Cores +Earth Power Cable (XLPE Insulated)

Rated Temperature: 90oC

Rated Voltage: 600/1000V

Reference Standard: IEC60502

Conductor: Shaped and circular stranded copper conductors

Insulated: Insulated with cross-link polyethylene compound

PVC bedded

Flame retardant PVC sheathed overall

Application Of 4 Cores +Earth Power Cable (XLPE Insulated)

For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions

For situation not suppose to bear the external mechanical force.

There are many electrical cable manufacturers, but we are one of the best choices for you.
