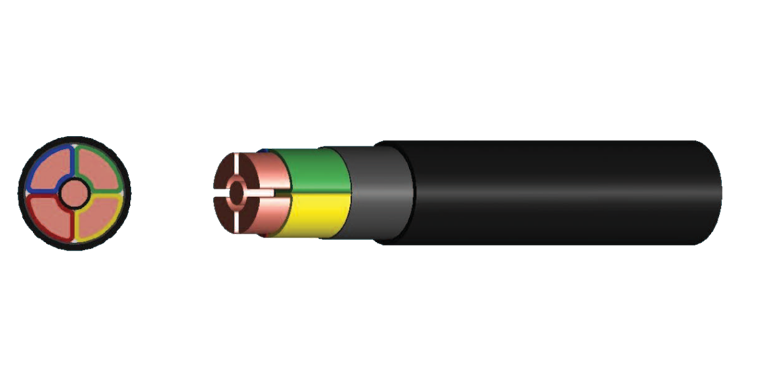

4 Cores +Earth Power Cable (XLPE Insulated)
The structure of 4 cores+1 earth is designed for application where the earth wires are required according to customer requirements. These 4 core and earth cables are often referred 4 cores +1 cables XLPE insulated with voltage 0.6/1000v or IEC60502 4 core and earth cable.
As a leading XLPE cable manufacturer in China, Jenuin offer cost-effective 4mm/6mm/16mm xlpe 4 core and earth cable made of high-quality material, feel free to contact!
4 core and earth cable (XLPE Insulated) Characteristics
|
Cross-sectional Area (mm2) |
No.&diameter of wire (N/mm) |
Average overall diameter (mm) |
Reference weight (kg/km) |
|
4x1.5+1x1.0 |
1/1.38, 1/1.13 |
13.9 |
257 |
|
4x2.5+1x1.5 |
1/1.78, 1/1.38 |
14.9 |
322 |
|
4x4.0+1x2.5 |
7/0.85, 7/0.67 |
17.1 |
446 |
|
4x6.0+1x4.0 |
7/1.04, 7/0.85 |
18.4 |
567 |
|
4x10+1x6.0 |
7/1.35, 7/1.04 |
20.8 |
806 |
|
4x16+1x6.0 |
7/1.70, 7/1.04 |
23.0 |
1087 |
|
4x16+1x10 |
7/1.70, 7/1.35 |
23.5 |
1142 |
|
4x25+1x10 |
7/2.14, 7/1.35 |
26.8 |
1601 |
|
4x25+1x16 |
7/2.14, 7/1.70 |
27.3 |
3552 |
|
4x35+1x10 |
19/1.53, 7/1.35 |
29.8 |
2066 |
|
4x35+1x16 |
19/1.53, 7/1.70 |
30.3 |
2137 |
Description Of 4 core earth cable (XLPE Insulated)
Rated Temperature: 90oC
Rated Voltage: 600/1000V
Reference Standard: IEC60502
Conductor: Shaped and circular stranded copper conductors
Insulated: Insulated with cross-link polyethylene compound
PVC bedded
Flame retardant PVC sheathed overall
Application Of 4 Cores +Earth Power Cable (XLPE Insulated)
For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions
For situation not suppose to bear the external mechanical force
There are many underground cable suppliers, but we are one of the best choices for you.
