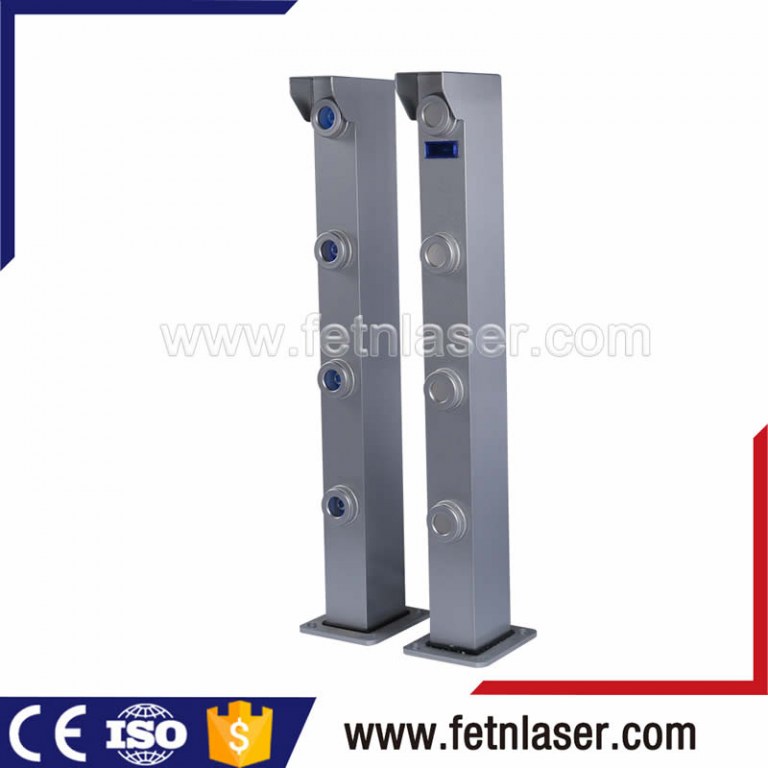

4 beams protecting outdoor in burglar alarm systems laser beam detector
XD-B**D series intrinsically safe explosion proof type Four-beam laser intrusion detector is the upg rade of XD-B series intrinsically safe explosion proof type double-beam product. It has more stable core components, more reasonable structure and increased alert density. It adopts adjacent double be ams to simultaneously realize blocking alarm, with higher stability, thus dramatically increasing ac curacy of alarm.
XD-B**D series intrinsically safe type Four-beam laser intrusion detector has strong ability to re sist cold and heat, electromagnetic radiation, interference of miscellaneous lights and could adapt to rough weather of wind, rain, dust, frost, etc., thus being suitable for perimeter areas with high er alert rate requirements
|
Item |
Technical indexes |
|
Model |
XD-B 50/100/200/300/500 D |
|
Laser wave length |
650nm, 808nm, 980nm |
|
Alert distance |
0- 500m |
|
Alert level |
Four-layer alert |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC12V±10% or AC220V |
|
Working current: |
360mA when transmitting 240mA when receiving alarm |
|
Alarm output mode |
A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Anti-dismantling output pattern |
A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Angles at the transmitting and receiving ends |
Divergence angle: <3′ Receiving angle: ＞10° </p> |
|
Optical axis adjustment angle |
Horizontal 30° Vertical ±30° (range adjustable.) |
|
Product dimension |
60mm (L) × 80mm (W) × 644 (H) |
|
Chassis dimension |
110mm (L) × 130mm (W) × 6mm (H) |
|
Material |
Aluminum alloy |
|
Product weight |
5.88KG (transmitting end: 3.2KG, receiving end: 2.68KG） |
|
Dimension of installation hole |
4 diameter 10 holes in even distribution |
|
Alarm time |
2s±1s (1-30s optional) |
|
Response time |
5ms-500ms (adjustable) |
|
Working environment temperature |
-40℃-70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
> 120,000h |
