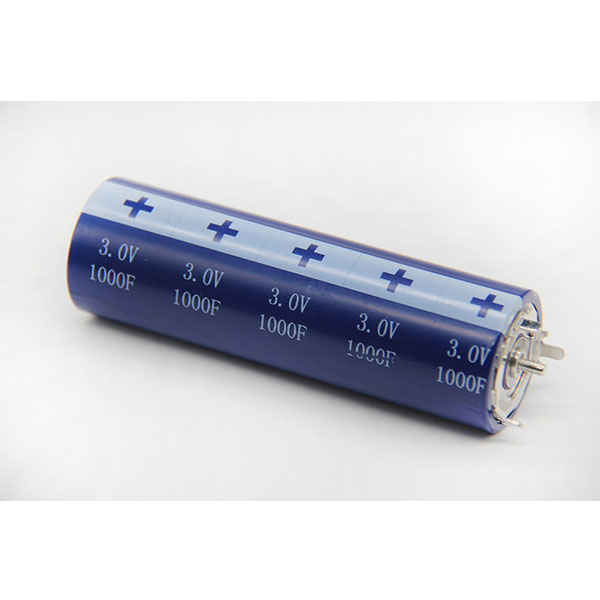

3V Winding Type Series
Quantité : 100000/day
The Performance Characteristics of 3V Winding Supercapacitor：
High energy, high power series
Kamcap's 3v supercapacitor series is available in temperatures ranging from -40 to +65 °C and is suitable for long-term stability in high pressure environments.
SE/HE series kamcap high power supercapacitor products use a temperature range of -25 ° C ~ 70 ° C low leakage, suitable for long-term continuous discharge of small current.
SP/HP/LR seires kamcap super capacitor products use a temperature range of -40 ° C ~ 70 ° C low internal resistance, providing instantaneous high current output.
Typical Application of 3V Winding Super Capacitor
Kamcap 3.0V ultracapacitor is widely applied into different industries. For example, it can be used in RAM, detonator, car recorder, water meter, electricity meter, gas meter, controller, vacuum switch, digital camera, motor drive and clock circuit. The 3.0v super capacitor also performs well in industrial backup power supply, toy, program-controlled switch, distribution Transformer supervisory Terminal Unit（TTU）etc.
If you are interested in our 3.0V ultracapacitor, please contact us through info@kamcap.com. We would like to provide you with more details.
Specification & Drawing of 3V Winding Ultracapacitor Series
|
Series name |
HP Series High power type ultracap |
|
Type name |
HP-3R0 |
|
Rated voltage VR |
3.0V |
|
Surge voltage |
3.15V |
|
Capacity range |
1F-500F |
|
Operating temperature range |
-40 ~ +65℃ |
|
Product life |
Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times. |
|
High temperature endurance life：Maximum temperature retention VR，1000 hours.Capacity attenuation≤30%, ESR change≤4 times. |
Key Features of 3V Winding Ultracapacitor
|
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
HP-3R0-J504VYJ17 |
0.5 |
1100 |
550 |
6.3 |
12.5 |
2.5 |
|
HP-3R0-J704VYJ06 |
0.7 |
1100 |
550 |
8 |
13 |
3.5 |
|
HP-3R0-J105VYJ06 |
1 |
600 |
300 |
8 |
13 |
3.5 |
|
HP-3R0-J105TYJ16 |
1 |
1100 |
550 |
6.3 |
10 |
2.5 |
|
HP-3R0-J155VYJ66 |
1.5 |
600 |
300 |
10 |
13 |
5 |
|
HP-3R0-J155UYJ18 |
1.5 |
700 |
350 |
6.3 |
14 |
2.5 |
|
HP-3R0-J205VYJ07 |
2 |
360 |
180 |
8 |
20 |
3.5 |
|
HP-3R0-J205VYJ42 |
2 |
480 |
240 |
6.3 |
22 |
2.5 |
|
HP-3R0-J335VYJ07 |
3.3 |
280 |
140 |
8 |
20 |
3.5 |
|
HP-3R0-J335VYJ13 |
3.3 |
280 |
140 |
10 |
20 |
5 |
|
HP-3R0-J405VYJ13 |
4 |
200 |
100 |
10 |
20 |
5 |
|
HP-3R0-J405VYJ07 |
4 |
200 |
100 |
8 |
20 |
3.5 |
|
HP-3R0-J475VYJ13 |
4.7 |
180 |
90 |
10 |
20 |
5 |
|
HP-3R0-J475VYJ09 |
4.7 |
180 |
90 |
12.5 |
21 |
5 |
|
HP-3R0-J505UYJ04 |
5 |
180 |
90 |
8 |
24 |
3.5 |
|
HP-3R0-J505VYJ13 |
5 |
180 |
90 |
10 |
20 |
5 |
|
HP-3R0-J505TYJ07 |
5 |
180 |
90 |
8 |
20 |
3.5 |
|
HP-3R0-J605VYJ13 |
6 |
150 |
75 |
10 |
20 |
5 |
|
HP-3R0-J705UYJ13 |
7 |
140 |
70 |
10 |
20 |
5 |
|
HP-3R0-J805VYJ09 |
8 |
120 |
60 |
12.5 |
21 |
5 |
|
HP-3R0-J106UYJ11 |
10 |
120 |
60 |
10 |
25 |
5 |
|
HP-3R0-J106VYJ12 |
10 |
110 |
55 |
10 |
30 |
5 |
|
HP-3R0-J106VYJ09 |
10 |
110 |
55 |
12.5 |
21 |
5 |
|
HP-3R0-J156VYJ10 |
15 |
76 |
38 |
12.5 |
25 |
5 |
|
HP-3R0-J156VYJ19 |
15 |
76 |
38 |
12.5 |
34 |
5 |
|
HP-3R0-J166VYJ20 |
16 |
76 |
38 |
16 |
20 |
7.5 |
|
HP-3R0-J186VYJ74 |
18 |
60 |
30 |
16 |
24 |
7.5 |
|
HP-3R0-J206VYJ19 |
20 |
60 |
30 |
12.5 |
34 |
5 |
|
HP-3R0-J256VYJ21 |
25 |
60 |
30 |
16 |
26 |
7.5 |
|
HP-3R0-J256UYJ19 |
25 |
60 |
30 |
12.5 |
34 |
5 |
|
HP-3R0-J306VYJ21 |
30 |
40 |
20 |
16 |
26 |
7.5 |
|
HP-3R0-J406VYJ25 |
40 |
40 |
20 |
18 |
41 |
7.5 |
|
HP-3R0-J506VYJ25 |
50 |
40 |
20 |
18 |
41 |
7.5 |
|
HP-3R0-J606VYJ25 |
60 |
40 |
20 |
18 |
41 |
7.5 |
|
HP-3R0-J107VYJ27 |
100 |
30 |
15 |
22 |
42 |
10 |
|
HP-3R0-J107UYJ28 |
100 |
16 |
8 |
22 |
46 |
10 |
|
HP-3R0-J367UYJ33 |
360 |
6.4 |
3.2 |
35 |
61 |
10 |
|
HP-3R0-J407UYJ33 |
400 |
6.4 |
3.2 |
35 |
61 |
10 |
|
HP-3R0-J507UYJ44 |
500 |
6 |
3 |
35 |
80 |
22 |
Now the price of 500f super capacitor is affordable, if you have needs, please leave us a message.
If you want to know more about how to make a supercapacitor at home, please visit our website.
Through continuous efforts and technological development, Kamcap has become one of the professional supercapacitor manufacturer with the largest production scale, the most complete product specifications and the most competitive in China. Kamcap has achieved the brand with professionalism, and the concept of quality is more important than everything.
