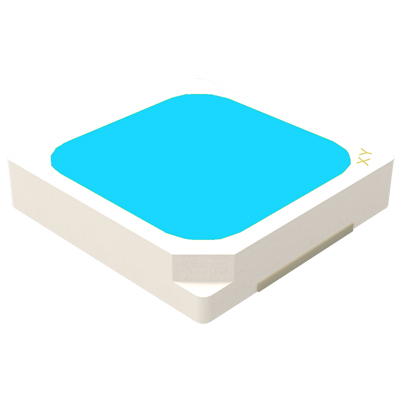

3030 RGB SMD LED
SMD color consistency is good. The dispensing process adopts centrifugal technology to enhance the uniformity of the light spot and good heat dissipation.
Product Advantages of RGB 3030 RGB LED
- All colors included customized wavelength.
- Red light: 620-630NM (R620), Green light: 520-530NM(G520), Blue light: 455-465NM(B455), Yellow light: 1950±75K (2G), Amber light: 595-605NM(H595), Orange light600-610NM(O600), Pink light:2050±75K(F20)
- Small volume, big light-emitting area, high luminance; good consistency, without color differences; silicone package, strong anti-UV, high temperature resistance, applied to reflow soldering, working in harsh environments.
- Products pass strict destructive test of this industry.Red ink testVulcanization testHigh-temperature burn-in testCold and hot shock testDouble 85 test
- Comply with the standards of the US Energy Star and ERP.
- Obtain test and certifications like LM-80 and photobiological certification.
Application:
downlight, light bulb, panel light, stage lighting, building/outdoor lighting, landscape light, instrument display, strip light, signal light, advertisement letter, advertisement lightbox, etc
Specification of RGB 3030 SMD LED:
| Product Code | Length Of Grade(nm) | Luminous Flux(lm) | Forward Voltage | Current |
| S01-P30FXXXX-R620-XX | 620-630 | 50-60 | 2.0-2.4 | 350 |
| S01-P30FXXXX-R660-XX | 660-665 | 20-30 | ||
| S01-P30FXXXX-R730-XX | 730-740 | 250-350 | 2.8-3.4 | |
| S01-P30FXXXX-G520-XX | 520-530 | 90-100 | ||
| S01-P30FXXXX-B455-XX | 455-465 | 30-40 |
Product Features of RGB 3030 SMD LED
- 3.4mm*3.0mm *0.7mm SMT LED Thickness.
- View Angle: 120°
- Package:4000PCS/Packet
- Dice: Blue(InGaN)
- Operating Temperature: -40~+80℃
- Soldering Temperature:260for10sec℃
- Super High Power Consumption
- Various Colors And Types Available.
- Resin(Mold): Silicone
- Reverse Voltage: 5V
- Storage Temperature: -40~+100℃
- Pulsed Forward Current 200mA (Duty 1/10, Pulse Width 0.1mS.
