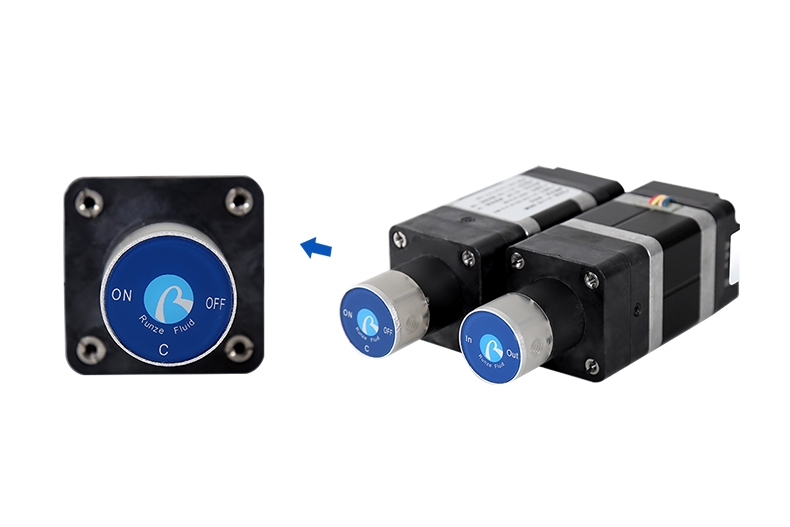

3 Way Switching Valve
The three way switching valve was driven by a stepper motor to switch the inside rotor to a specific port, but it is was triggered by DC7-33V voltage signals to power on and off just like common solenoid valves. Regarding this high pressure water solenoid valve, we have 2 way, 3 way, 4-way valves available, all these models anti maximum pressure to 1.6Mpa which can be used in special pressure systems. Runze is a professional switching valve manufacturer and supplier, we are able to offer various fluid control equipment. If you want to know more, please contact us now!
Specification of High Pressure 3 Way Solenoid Valve
Orifice |
1.5mm |
||||
Wetted material |
PCTFE, Sapphire |
||||
Valve model |
M01 |
M02 |
M03 |
M04 |
M05 |
Port-to-port |
52.93ul |
50.68ul |
52.93ul |
101.35ul |
51.32ul |
Dead volume |
13.83ul |
11.66ul |
13.83ul |
23.31ul |
12.22ul |
Port configuration |
2/3/4 port |
||||
Air pressure |
0-1.0Mpa |
||||
Water pressure |
0-1.2Mpa |
||||
Liquid temperature |
0℃-80℃ |
||||
Connection |
1/4-28UNF |
||||
Replaceable parts |
Stator replaceable, rotor sealed irreplaceable |
||||
Driver |
Non-optional |
||||
Valve drive |
≤530ms (response time) |
||||
Trigger signal |
DC7-33V |
||||
Feedback input signal |
3.3-24V high low level output |
||||
Max. current |
2.0A |
||||
Power supply |
DC24V/1.0A |
||||
Max power |
48W |
||||
Operating temperature |
0℃--50℃ |
||||
Operating humidity |
<70% relative humidity, non-condensing</span> |
||||
Dimension (L*W*H) |
42*42*113mm |
||||
Net weight |
0.487KG |
Port |
Description |
DC24V (+) |
DC24V positive |
DC24V (-) |
DC24V negative |
V-Tin (DC7~33V+) |
External trigger voltage (DC7~33V) |
DC7~33V GND (-) |
GND |
AGND |
External reference voltage GND (-) |
OUT1 |
Output level 1 |
OUT2 |
Output level 2 |
Vref |
External reference input voltage (+) |
RUNZE FLUID, a professional microfluidic components supplier, offers a complete product range of microfluidic instrumental components including industrial syringe pumps, multiposition valves, plastic fittings, peristaltic pumps, fluidic tubing, gastight syringes, OEM molding parts, which play an important role in fluid analytical instrument prototyping and production, like water, blood, chemicals, diathermic oil, etc. All of our microfluidic components are of extremely high qualities and with reasonable prices, and they are widely used in environmental lab equipment, automated fluid dispensing, medical diagnostic equipment, food analysis instrument, etc. Our microfluidic components are largely exported overseas every year, and we have become of the leading microfluidic components manufacturer in China by now. No matter what kind of fluid connection products you are looking for, our professional R&D team is always here to give you the right suggestions as long as you send an inquiry.
