3 Way Switching Valve
three way switching valve
3 way switching valve
Nanjing Runze Fluid Control Equipment Co., Ltd. founded in 2014, was born a high-tech manufacturer engaged in R&D, production, marketing, and service for microfluidic components including peristaltic pump, China syringe pump, piston pump, multiport valve, tubing, plastic fittings, which are key parts in environmental analysis, laboratory, medical device, bio-pharmaceuticals, petrochemical engineering, food, and beverage. Based on stable development and constant pursue of high-level cooperation on safety, quality, reliability, and innovation, RUNZE FLUID has obtained I S O 9 0 0 1 certification, 32 invention patents, and CE RoHS FDA certificates to enhance our service capabilities.

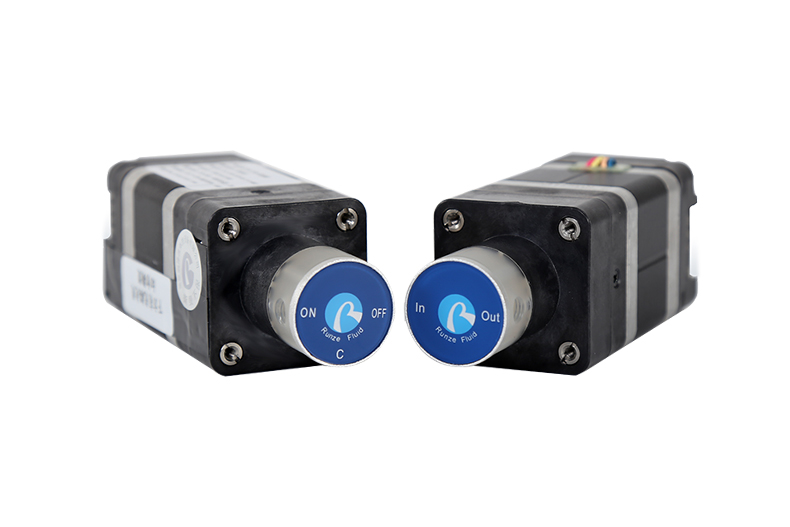

The 3 way switching valve was driven by a stepper motor to switch the inside rotor to a specific port, but it is was triggered by DC7-33V voltage signals to power on and off just like common solenoid valves. Regarding this high pressure water solenoid valve, we have 2 way, 3 way, 4-way valves available, all these models anti maximum pressure to 1.6Mpa which can be used in special pressure systems. Runze is a professional switching valve manufacturer and supplier, we are able to offer various fluid control equipment. If you want to know more, please contact us now!
Specification of High Pressure Three Way Switching Valve
|
Orifice |
1.5mm |
||||
|
Wetted material |
PCTFE, Sapphire |
||||
|
Valve model |
M01 |
M02 |
M03 |
M04 |
M05 |
|
Port-to-port |
52.93ul |
50.68ul |
52.93ul |
101.35ul |
51.32ul |
|
Dead volume |
13.83ul |
11.66ul |
13.83ul |
23.31ul |
12.22ul |
|
Port configuration |
2/3/4 port |
||||
|
Air pressure |
0-1.0Mpa |
||||
|
Water pressure |
0-1.2Mpa |
||||
|
Liquid temperature |
0℃-80℃ |
||||
|
Connection |
1/4-28UNF |
||||
|
Replaceable parts |
Stator replaceable, rotor sealed irreplaceable |
||||
|
Driver |
Non-optional |
||||
|
Valve drive |
≤530ms (response time) |
||||
|
Trigger signal |
DC7-33V |
||||
|
Feedback input signal |
3.3-24V high low level output |
||||
|
Max. current |
2.0A |
||||
|
Power supply |
DC24V/1.0A |
||||
|
Max power |
48W |
||||
|
Operating temperature |
0℃--50℃ |
||||
|
Operating humidity |
<70% relative humidity, non-condensing</span> |
||||
|
Dimension (L*W*H) |
42*42*113mm |
||||
|
Net weight |
0.487KG |
||||
|
Port |
Description |
|
DC24V (+) |
DC24V positive |
|
DC24V (-) |
DC24V negative |
|
V-Tin (DC7~33V+) |
External trigger voltage (DC7~33V) |
|
DC7~33V GND (-) |
GND |
|
AGND |
External reference voltage GND (-) |
|
OUT1 |
Output level 1 |
|
OUT2 |
Output level 2 |
|
Vref |
External reference input voltage (+) |
