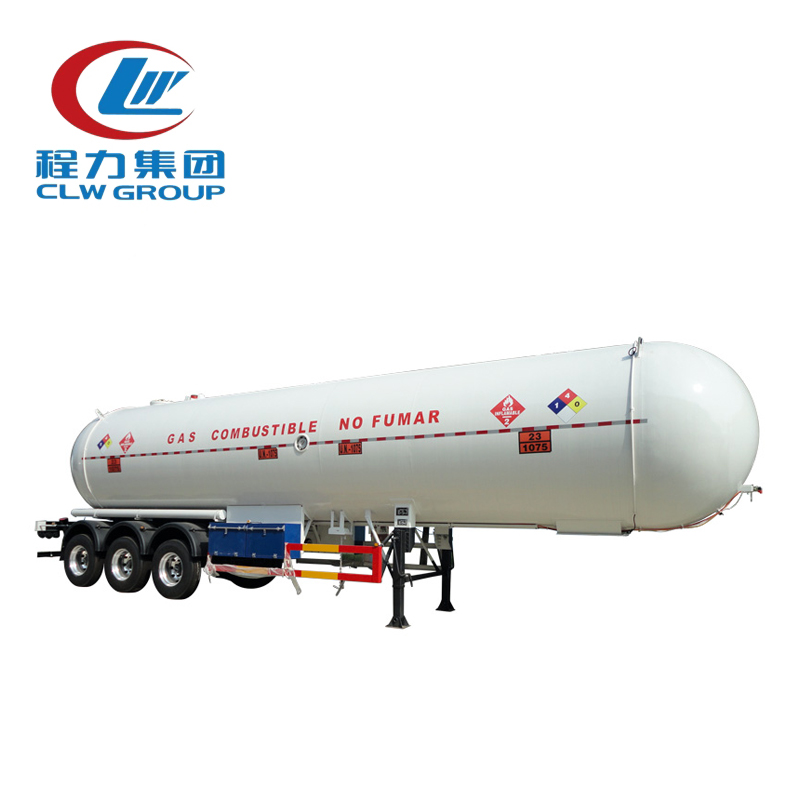

3 Axles 56000 Liters LPG Tank Semi Trailers

Quantité : 30000 Unit   Prix : 5000-50000USD

LPG tank semi trailer, also known as liquefied petroleum gas semi trailer, LPG transportation semi-trailer, etc. It is used to transport the propane isobutene and other liquid propylene ammonia liquefied gas such as methylamine acetaldehyde dedicated transport semi-trailer. We have quality lpg semi trailers for sale.

The advantage of 3 Axles 56000 Liters LPG Transport Trailers For Sale

1. Quality, dimension and welding quality of pressure components, operation quality, installation quality, safety devices and accessories within the product materials.

2. Physical and chemical tests of conventional tank materials, such as mechanical properties and chemical components. Through strict X-ray nondestructive testing and magnetic particle testing, the welding joints, welding parts, can and geometrical pressure were tested.

3. Sealing products, bearing pressure, affecting the inspection of various technical indexes of product safety operation.

4. A, grade B 100% radiation welding test, grade II qualified, C, grade D weld 100% magnetic particle inspection, grade I qualified.

The Specification of 3 Axles 56000 Liters LPG Tank Semi Trailer

Tanker Essential Information

Volume of Tank(Liters)

56

Overall Dimensions(L*W*H)(mm)

12700*2500*3975

Tank Dimensions

(Inner Diameter*Thickness*Length)(mm)

2450*11.5*12340

Estimated Tare Weight(kg)

16480

Payload(kg)

23520

Total Weight(kg)

40000

Wheelbase(mm)

6865+1310+1310

Shell of Tanker

Products

Liquefied Petroleum Gas (Propane)

Fluid Property

Flammable

Design Pressure(Mpa)

1.61

Design Temperature(℃)

50

Corrosion Allowance(mm)

1

Weld Joint Factor

1

Major Materials of Bearing Pressure

Thoughts Body:

End Plate:

Main Beam:

Quality Control Process

Riagraphic Test

100% X-ray detection

Heat Treatment

Overall treatment in a furnace,600℃ to 640℃

Hydraulic Test(Mpa)

2.22

Test Pressure(Mpa)

1.6

Magnaflux Inspection

For pipe and flange connection

Manhole(As Customer's Requirement)

Quantity

1;on the top, DN450/DN500

Safety Valve(As Customer's Requirement)

Quantity

2

Location

On the top of tanker

Size

DN50 or As Customer's Requirement

Level Gauge

Type

Manuel rotation type/Ball floating type

Location

At the rear or front of the end plate or as requirement

Control System

Liquid Gauge

1

Thermometer

1

Pressure Gauge

1

Emergency Cut-off Valves

2

Ball Valve

2

Running System

Axles

3*13T BPW Brand

Tire

12R22.5 Tubeless Tire

Landing Leg

JOST

King Pin

2” or 3”

Accessories

Tool Box

2

Valve Box

2

Wheel Carrier

1

Fire Extinguisher

2

Fender

4

Paint

As Customer's Requirement

Anti Static Belt

As Customer's Requirement

Electric System

As Customer's Requirement

Brake

As Customer's Requirement

Discharging Hose

As Customer's Requirement

Sun Visor

As Customer's Requirement

Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels
