282106-1 Female Fuel Tank Pump Connectors Superseal Waterproof Connector Housing
Quantité : 500pcs for Prix : USD0.1-USD2.00

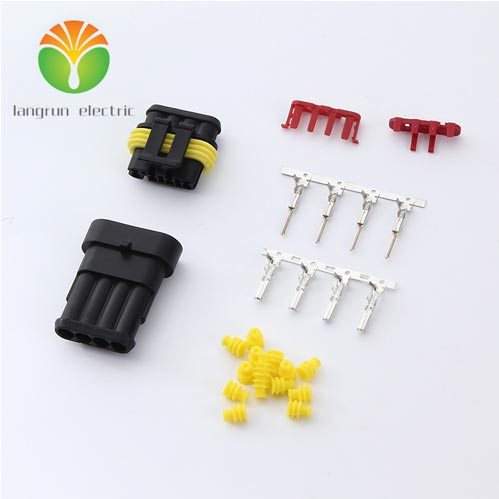

282106-1 female fuel tank pump connector is 4 pin waterproof connectors. Super seal Connector is waterproof connector ideal for use in the automotive industry. It can meet the increasing requirements for reliability and waterproof. At the same time, this super seal connector is widely used to install work lights/ LED lights on vehicle exteriors. The quick and easy interlock mechanism between male and female units provides simple connection and de-connection when needed. This allows for rapid and stress free installation and replacement of lights saving time and effort. The applicable wire size range is from 0.5 to 1.5mm2.
The advantages of 282106-1 female fuel tank pump connector housing
Sealing reliability proven under harsh conditions.
Designed for ease of manual harness assembly, engine mounting and under hood environments.
Applications of 282106-1 female fuel tank pump connector housing
Wire to wire (1.5mm) and ECU applications, under hood or any location where sealing is required.
Suitable for automotive, truck, bus or off-road vehicles.
The specification of 282106-1 female fuel tank pump connectors superseal waterproof connector housing
|
Item No. |
Pin |
Material |
Color |
Dimension(mm) |
Matching terminal |
Matching wire seal |
Original Code |
MPQ(pcs) |
||
|
L |
W |
H |
||||||||
|
DJ7041-1.5-11 |
4 |
PA66+GF |
Black |
32 |
17 |
42 |
DJ611-1.5*0.8 |
MFD006-4 |
282106-1 |
200 |
|
Product name |
282106-1 female fuel tank pump connectors superseal waterproof connector |
|||||||||
|
Item No. |
DJ7041-1.5-11 |
|||||||||
|
Original code |
282106-1 |
|||||||||
|
Material |
Housing: PA66+GF; Terminal: Copper Alloy, Brass, and Phosphor Bronze. |
|||||||||
|
Male or Female |
Female |
|||||||||
|
Primary Locking Feature |
Integrated in Housing |
|||||||||
|
Connector System |
Wire-To-Wire |
|||||||||
|
Vominal Voltage Architecture (V) |
12 (Reference Value) |
|||||||||
|
Operating Voltage (VDC) |
12 (Reference Value) |
|||||||||
|
Insulation Resistance |
100MΩ Min |
|||||||||
|
Number of Positions |
4 Pin |
|||||||||
|
Sealed or Unsealed |
Sealed |
|||||||||
|
Color |
Black |
|||||||||
|
Operating Temperature range |
-40℃~120℃ |
|||||||||
|
Feature |
Plug housings for receptacle contacts, cap housings and tab contact variants; Pre-assembled secondary lock. |
|||||||||
|
Application |
widely used to install work lights/ LED lights on vehicle exteriors. |
|||||||||
|
Function |
Automotive Electrical Wiring Harness |
|||||||||
|
Production process |
Injection, pressure welding, soldering |
|||||||||
|
Certificates |
TS16949 system and RoHS, REACH. |
|||||||||
Wenzhou Langrun Electric Co.,Ltd. is a professional electronic connector manufacturer, we provide auto cable tie, auto clip, auto terminal, automotive electrical connections, socket housing and etc. Want to know more? Please contact us.
