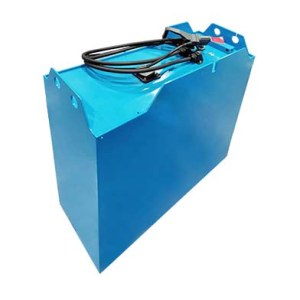

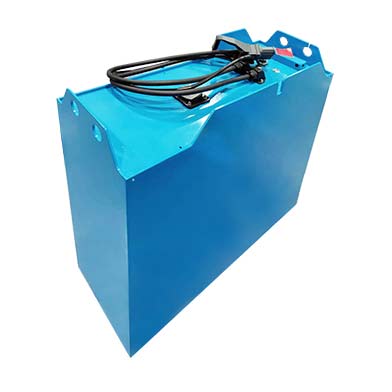

24V Lithium-ion Forklift Battery
Quantité : 6Gwh for c Prix : 0.48~0.6USD/Ah
Smart FLT Series: Forklift Lithium Battery 25.6V206Ah
Remote&Onsite Product Support
GPS&GPRS function
Charger communication commissioning
Charge and discharge connector adaption
Interactive integrated Display with voice, buzz and switch button
Customization service against different brand of forklifts
IP 54 structure design
Flexible supply in additional weight
Vehicle CAN communication support
24V Forklift Battery Technical Data
No. |
Items |
Parameter |
Note |
|
|
|
25.6V206A |
|
|
|
|
206Ah1P8S |
|
|
1 |
Nominal voltage(V) |
25.6 |
|
|
2 |
Operating voltage(V) |
min |
20 |
|
3 |
max |
29.2 |
|
|
4 |
Group mode |
206Ah1P8S |
|
|
5 |
Nominal energy(KWh) |
5.27 |
25±2℃ |
|
6 |
Weight(Kg) |
≈80kg |
no additional weight |
|
7 |
Nominal capacity(Ah) |
206 |
25±2℃ |
|
8 |
Maximum continuous charge current(A) |
100 |
25±2℃ |
|
9 |
Maximum continuous discharge current(A) |
160 |
25±2℃ |
|
10 |
Maximum pulse discharge current(≤5s)(A) |
300 |
25±2℃ |
|
11 |
Shipping consistency(mv) |
30 |
The voltage difference between cells <30mV |
|
12 |
Charging port |
REMA160A(female) |
customizable |
|
13 |
Discharging port |
REMA160A(female) |
customizable |
|
14 |
GPRS communication |
4G |
optional |
|
15 |
SOC operating range(%) |
20~100 |
|
|
16 |
Insulation requirements(MΩ) |
≥20 |
500V DC, High voltage output to battery shell, at the normal temperature and humidity |
|
17 |
cooling method |
Natural cooling |
|
|
18 |
Shipping capacity |
≈30% |
SOC is consistency in the same batch |
|
19 |
Dimension L (mm) |
550 |
For Crown WP3035-45 |
|
Outer box dimensions can be customizable according to the brand and model of forklifts |
||||
Dimension W (mm) |
195 |
|
||
Dimension H (mm) |
520 |
|
||
20 |
Charger |
Optional |
|
24V Forklift Battery Advantages
Cost-effectiveness: 24-volt forklift batteries tend to be more affordable than higher-voltage options, such as 36V forklift batteries or 48-volt forklift batteries. This can be particularly beneficial for small businesses or those with budget constraints.
Compact Size: A 24-volt forklift battery is usually smaller and lighter than higher-voltage batteries. This can be advantageous for applications where space is limited or when maneuvering in tight spaces is required.
Improved Maneuverability: With a lighter battery, a forklift lithium battery equipped with a 24-volt battery can offer enhanced maneuverability. This can be particularly beneficial in warehouses or other confined areas where precise movements are necessary.
Easy Charging Infrastructure: Charging infrastructure for 24-volt batteries is generally more readily available and less expensive than for higher-voltage batteries. This makes it easier to find suitable charging stations and reduces the overall investment required for charging equipment.
Reduced Maintenance Costs: Lower-voltage systems, such as 24-volt batteries, often have fewer components, which can translate to lower maintenance costs. Additionally, the lower voltage reduces the stress on electrical components, potentially extending their lifespan.
Simplicity: A 24-volt forklift system is generally simpler and easier to operate and maintain than a higher-voltage system. This can be advantageous for businesses with less specialized technical expertise or those looking for straightforward equipment.
Tags:
Bulk Lithium Batteries
Forklift Lithium Ion Battery
Now the price of 24 volt forklift battery for sale is reasonable, if you have needs, please contact us.
As a lithium ion battery factory, we will do our best to meet all the needs of customers.
