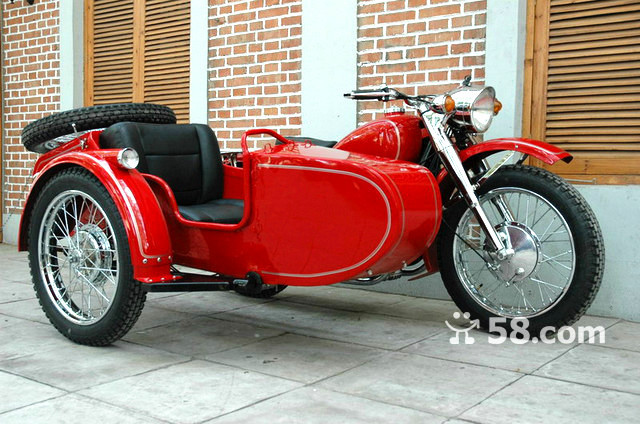

24hp Red Changjiang750cc Sidecar Motorcycle
Détails
Chine (Rép. pop) Véhicule
Véhicule

24hp Red Changjiang750cc Sidecar Motorcycle

ITEM DESCRIPTION

1. Model Number: CJ750B

2. Material: iron, painted

3. Style: Classic military theme

4. Color: matted black

5. Engine: 750cc

6. Customization: is welcomed, we can do patterns on car body

7. Available Colors: any color

8. MOQ: 1 piece

9. Optional capacity: we can change the engine with 250cc, 300cc, 350cc, 750cc

10. Optional Equipment: two ammo cans, blackout lamp, gun rack, disc brack, BWM-R71 fuel tank, spare fuel tank, small tool box

REMARK

1. Because of different monitors and brightness, there may exists tiny color difference.

2. Items will be insured from damage during transport from our factory to the destination port. If you want the items shipped to your house, please contact us.

3. We are not responsible for any duties, taxes, or additional charges that may be charged by Customs for any International deliveries.

4. There are two optional packing methods.

1) Wooden box packing

Cargo is Packed with un-fumigated wooden box.

SHIPMENT

We ship the item by sea generally, if you have other ideas please cantact us.Customized items will be shipped in 15 work days on payment received. Please make sure the shipping address is correct. We are not responsible for wrong address.

For detailed shipping costs, please contact us.

Price terms

This car can't send express, need normal customs clearance, The costs(5522US$) include: steel tower packing, into the storage fee, customs clearance fee, 17% of the value-added tax(938).Sea freight are different from places , please contact us according to the country to modify the freight.

Packing Detail

Rolled with a plastic paper into a cube steel shelf, and then covered by steel net.

Weight after packing: 460kg/piece

Size after packing: 2200×1600 × 1270mm3

Optional Kits

Technical Data

Model

category

Antique750B—A1

Antique 750B—A

1

performance criterion

Brake distance

≤8m

Top speed

≥85KM/H

MIN steady speed

≤25KM/H

gradeability

≥15°

Economic speed

50KmH

Economic speed fuel consumption

≤4.6L/100Km

2

Vehicle size and quality parameters

Dimensions

2230 ×1590 ×1000mm

fore-and-aft wheelbase

1492mm

Fore-and-side wheelbase

1147mm

tread

1175mm

Ground clearance

140mm

Turn round-diameter

6065mm,4380mm

Dry weight

320kg

Max payload

220kg

3

The engine and the ignition system

Type Model

series of F2P78FMF1

series of D2P78FM

type

Four-stroke double-cylinder air-cooled and Horizontally-opposed

Total displacement

746ml

Cylinder diameter*stroke

78×78mm

Compression ratio

7: 1

6: 1

Min no-loading stabilized speed(idling)

750±75r/min

Direction of power and appropriate speeds

17.7KW(24HP)/4000±300r/min

14KW(19HP)/3600±300r/min

Max power and its corresponding speed

22KW(30HP)/5000±300r/min 17.7KW(24HP)/4000±300r/min

Max torque and its corresponding rotary

49N(5kgf·m)/3800±300r/min 39.2N·M(4gf·m)/3000±300r/min

Gear position No. 1 Gear position

16.63: 1

No. 2 Gear position

10.55: 1

No. 3 Gear position

7.85: 1

No. 4 Gear position

6.01: 1

Rear drive ratio

4.62: 1

Starting mode

Kick & electric

Way of ignition

battery ignition system with contact

Spark plug type

T4135J or T4114J

Spark plug clearence

0.6~0.7mm

Valve clearence

Air intake,exhaust: 0.1mm

4

Fule and lubrication

Capacity of gasoline

26L

Fuel trademark

70#or90#gasoline(SH0112—92)

Oil capacity of crankcase

2L

Transmission case engineoilcapacity

0.8L

Oil capacity of rear drive

0.175L

Lubricator oil

>0°C,HQ1.0GB485: <0°C,HQ6GB485</p>

5

Drive system

Cluth

Mechanically controlled double-disc. Dry friction

Tyre size (inch)

3.75—19

Tyre pressure(kpa)

Front wheel 250±20kpa,rear wheel335±kpa,side wheel350±20kpa

Brake pattern

The front brake: drum handbraking rear brake: drum footbraking

6

Electrical system

Rated voltage

12V

Storage battery

6QA36

Alternator

MJF—280B

silicon rectifier

GZL—22

regulator

JFT—149

starting dynamo

MZQ—07A

starting relay

JN3—12

Headlamp

12V60/55W

Cornering lamp

12V20W

taillight

12V20/8W

Electric hom

12V,≤3A

Product Catalogue

1)125CC, 200cc, 250cc,300cc, 350cc, 600cc, 750cc sidecars
2) electric sidecars/cars/KAINDUDU sidecars
3) 250cc engine, 650CC ,750cc engines.
4) sidecar/motorcycle accessories and parts.
