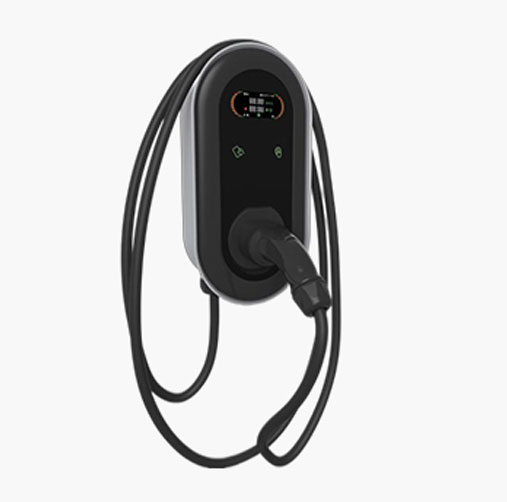

22KW Type2 AC Charger
Quantité : 0-50DC 0-1 Prix : 300USD-20000USD
Charge-Uni commercial AC charging pile features an energy-efficient output of up to 32A and a power output of 22kw. The protection level has reached to IP55.
Details of Type 2 22KW Charger
Advanced Technology
Advanced MID technology makes more accurate power display. Built-in Wi-Fi, Ethernet, and 4G connectivity meet a stable connection. Users can check the charging status through the APP.
Strong Power
The three-phase output allows for a power up to 22kW and only three hours to fully charge the 60KW battery.
Reliable Protection
With its unique design and integration, the charging pile achieves IP55 protection level, which effectively protects the device from rain and dust, hence extending the life of the product.
Specification of Type 2 22KW AC Charger
|
Model Number |
CU-EU3 |
|
AC Power Input Rating |
380V AC(3-Phase) |
|
Rated Frequency |
50/60Hz |
|
Output Current |
32A |
|
Output Power |
22kW |
|
Connector Type |
5m Type 2 charging cable |
|
LCD Display |
3.8 (optional) |
|
Internet Connection |
Wi-Fi (LAN optional) |
|
OCPP Protocol (Optional) |
OCPP 1.6 |
|
IP Level |
IP55 |
As one of ev charger manufacturers, we can offer sorts of ev home charger for sale, anything you need, please contact us.
