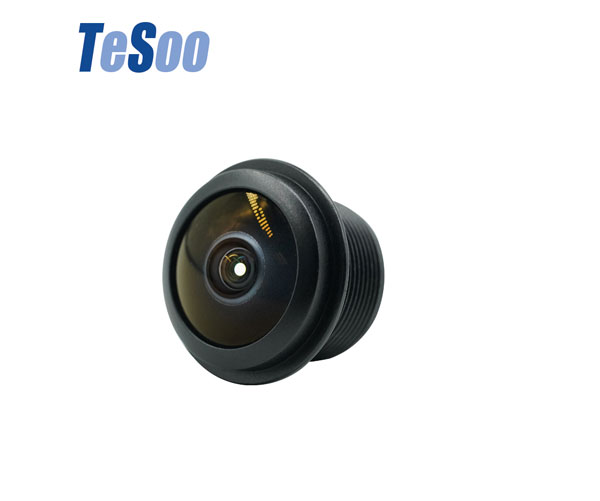

220 Degree Fisheye Lens
Tesoo 220 degree lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of 220 degree fisheye lens is 1/2.3'' to 1/4''. TTL: 12.8-17.75mm. EFL: 0.83-1.83mm. F.NO: 1.8/2.0/2.2/2.4. MBFL: 1.30-2.63mm. Get 220 degree lens price now!
Specifications of 220 Degree Fisheye Lens
|
PART No. |
TS-2913U-A00 |
||
|
TTL |
13.2mm |
||
|
EFL |
1.35mm |
||
|
F/NO |
2.0 |
||
|
MBFL |
2.20mm |
||
|
SENSOR SIZE |
1/2.9'' |
1/2.7'' |
|
|
FOV |
FOV |
||
|
(D) |
215° |
215° |
|
|
(H) |
215° |
215° |
|
|
(V) |
130° |
140° |
|
|
MAX IMAGE CIRCLE |
φ4.70mm |
||
|
Mount |
M12*0.5 |
||
|
CONSTRUCTION |
All Glass +Metal |
||
|
IP Rating |
IPX7 or IP69K |
||
|
DIAMENSIONS |
φ14/16*11 |
||
|
Operating temp. |
-40 ~ +85℃ |
||
|
Storage temp. |
-40 ~ +90℃ |
||
|
PART No. |
TS-4013T-A01 |
||
|
TTL |
14.11mm |
||
|
EFL |
0.83mm |
||
|
F/NO |
2.0 |
||
|
MBFL |
1.69mm |
||
|
SENSOR SIZE |
1/4'' |
1/3'' |
|
|
FOV |
FOV |
||
|
(D) |
220° |
220° |
|
|
(H) |
210° |
220° |
|
|
(V) |
158° |
190° |
|
|
MAX IMAGE CIRCLE |
φ4.0mm |
||
|
Mount |
M12*0.5 |
||
|
CONSTRUCTION |
2G4P+Plastic |
||
|
IP Rating |
IPX7 or IP69K |
||
|
DIAMENSIONS |
φ14/16*12.42 |
||
|
Operating temp. |
-40 ~ +85℃ |
||
|
Storage temp. |
-40 ~ +90℃ |
||
|
PART No. |
TS-3013U-A00 |
||
|
TTL |
13mm |
||
|
EFL |
1.40mm |
||
|
F/NO |
1.8 |
||
|
MBFL |
2.10mm |
||
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
|
FOV |
FOV |
||
|
(D) |
210° |
210° |
|
|
(H) |
210° |
210° |
|
|
(V) |
130° |
150° |
|
|
MAX IMAGE CIRCLE |
φ4.40mm |
||
|
Mount |
M12*0.5 |
||
|
CONSTRUCTION |
All Glass +Metal |
||
|
IP Rating |
IPX7 or IP69K |
||
|
DIAMENSIONS |
φ14/16*10.9 |
||
|
Operating temp. |
-40 ~ +85℃ |
||
|
Storage temp. |
-40 ~ +90℃ |
||
|
PART No. |
TS-2816T-A01 |
||
|
TTL |
15.89mm |
||
|
EFL |
1.83mm |
||
|
F/NO |
2.4 |
||
|
MBFL |
2.63mm |
||
|
SENSOR SIZE |
1/2.7'' |
1/2.3'' |
|
|
FOV |
FOV |
||
|
(D) |
212° |
220° |
|
|
(H) |
180° |
198° |
|
|
(V) |
102° |
150° |
|
|
MAX IMAGE CIRCLE |
φ6.80mm |
||
|
Mount |
M12*0.5 |
||
|
CONSTRUCTION |
All Glass+Metal |
||
|
IP Rating |
IPX7 or IP69K |
||
|
DIAMENSIONS |
φ14/16*13.26 |
||
|
Operating temp. |
-40 ~ +85℃ |
||
|
Storage temp. |
-40 ~ +90℃ |
||
|
PART No. |
TS-4013U-A00 |
||
|
TTL |
12.8mm |
||
|
EFL |
1.0mm |
||
|
F/NO |
2.0 |
||
|
MBFL |
1.30mm |
||
|
SENSOR SIZE |
1/4'' |
1/2.8'' |
|
|
FOV |
FOV |
||
|
(D) |
210° |
210° |
|
|
(H) |
210° |
210° |
|
|
(V) |
160° |
210° |
|
|
TV-DISTORTION |
＜-90% |
＜-110% |
|
|
MAX IMAGE CIRCLE |
φ3.1mm |
||
|
Mount |
M12*0.5 |
||
|
CONSTRUCTION |
All Glass +Metal |
||
|
DIAMENSIONS |
φ16*11.50 |
||
|
Operating temp. |
-40 ~ +85℃ |
||
|
Storage temp. |
-40 ~ +90℃ |
||
|
PART No. |
TS-2918X-A18 |
||
|
TTL |
17.75mm |
||
|
EFL |
1.26mm |
||
|
F/NO |
2.2 |
||
|
MBFL |
1.84mm |
||
|
SENSOR SIZE |
1/2.7'' |
1/2.3'' |
|
|
FOV |
FOV |
||
|
(D) |
240° |
240° |
|
|
(H) |
240° |
240° |
|
|
(V) |
150° |
222° |
|
|
MAX IMAGE CIRCLE |
φ4.90mm |
||
|
Mount |
M12*0.5 |
||
|
CONSTRUCTION |
All Glass+Metal |
||
|
IP Rating |
IPX7 or IP69K |
||
|
DIAMENSIONS |
φ18*15.91 |
||
|
Operating temp. |
-40 ~ +85℃ |
||
|
Storage temp. |
-40 ~ +90℃ |
||
As one of professional camera lens suppliers, we have types of automotive lens for sale, if you have needs, please contact us.
