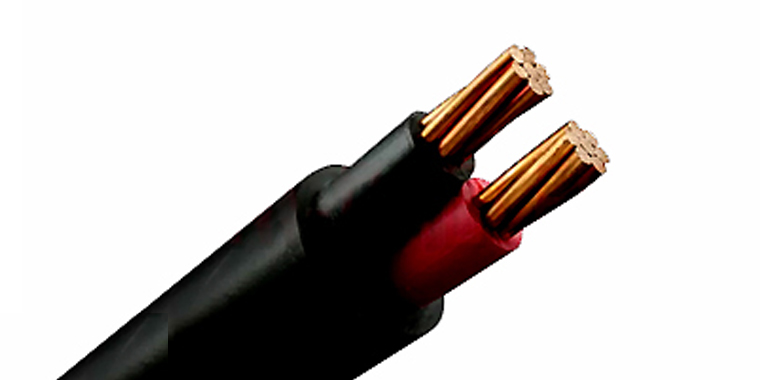

2 Cores Power Cable (PVC Insulated）
Prix : 0.1-100USD
PVC insulated 2 cores power cables are normally used in power transmission and distribution system. The 2 core pvc cable are referred to IEC60502 CU/PVC/PVC 0.6/1KV. The circular conductor are applied for the size below 16mm² and the shaped conductor is applied for the size above and including 35mm².
2 Cores Power Cable (PVC Insulated) Parameter
|
Cross-sectional Area (㎡) |
No.&diameter of wire (N/mm) |
Average overall diameter (mm) |
Reference weight (kg/km) |
Conductor Resistance (Ω/km) 20℃ Max |
|
2x1.5 |
1/1.38 |
12 |
186 |
12.1 |
|
2x2.5 |
1/1.76 |
12.8 |
225 |
7.41 |
|
2x4.0 |
7/0.85 |
15.2 |
324 |
4.61 |
|
2x6.0 |
7/1.04 |
16.2 |
390 |
3.08 |
|
2x10 |
7/1.35 |
18.2 |
531 |
1.83 |
|
2x16 |
7/1.7 |
20.0 |
699 |
1.15 |
|
2x25 |
10/1.83 |
17.2 |
679 |
0.727 |
|
2x35 |
14/1.83 |
18.8 |
887 |
0.524 |
|
2x50 |
19/1.83 |
21.5 |
1197 |
0.387 |
|
2x70 |
27/1.83 |
23.8 |
1606 |
0.268 |
|
2x95 |
37/1.83 |
27.4 |
2157 |
0.193 |
|
2x120 |
30/2.32 |
29.3 |
2689 |
0.153 |
|
2x150 |
37/2.32 |
32.4 |
3291 |
0.124 |
|
2x185 |
37/2.52 |
35.7 |
4002 |
0.0991 |
|
2x240 |
48/2.52 |
40.3 |
5122 |
0.0754 |
|
2x300 |
61/2.52 |
44.5 |
6430 |
0.0601 |
|
2x400 |
61/2.95 |
50.1 |
8634 |
0.0470 |
Description of 2 Cores Power Cable (PVC Insulated)
Rated Temperature: 70oC
Rated Voltage: 600/1000V
Reference Standard: GB/T12706, IEC60502, BS6346
Model: VV
Shaped stranded copper conductors
Flame retardant insulated with PVC compound
PVC bedded
Flame retardant PVC sheathed overall
Application of 2 Cores Power Cable (PVC Insulated)
• For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions.
• For situation not suppose to bear the external mechanical force.
As one of the most professional china power cable manufacturers, we provide china electric cable, bs 6387 cable, xlpe power cable and etc. Want to know more, contact us.
