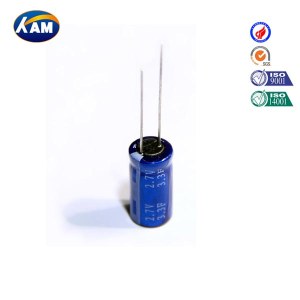

2.7V Winding Type Series
Technical data
HP Series
Performance characteristics：high energy Capacitor, high power series
Typical application：RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Series specification sheet：
|
Series name |
HP Series High power type |
|
Type name |
HP-2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
0.1F~3000F |
|
Operating temperature range |
-40 ~ +70℃ |
|
Product life |
Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times. |
|
High temperature endurance life：Maximum temperature retention VR，1000 hours.Capacity attenuation≤30%, ESR change≤4 times. |
Series specification sheet：
|
Series name |
HE Series High energy type |
|
Type name |
HE-2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
0.35F~25F |
|
Operating temperature range |
-25 ~ +70℃ |
|
Product life |
Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30% , ESR change≤4 times. |
|
High temperature endurance life：Maximum temperature retention VR，1000 hours. Capacity attenuation≤30%, ESR change≤4 times. |
Product performance list ：
HP 2.7V Series products(2.7 volt Capacitor):
|
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
HP-2R7-J104VYJ03 |
0.1 |
1400 |
700 |
5 |
12 |
2 |
|
HP-2R7-J104VYJ01 |
0.1 |
1400 |
700 |
5 |
10 |
2 |
|
HP-2R7-J154VYJ01 |
0.15 |
500 |
250 |
5 |
10 |
2 |
|
HP-2R7-J204VYJ01 |
0.2 |
1200 |
600 |
5 |
10 |
2 |
|
HP-2R7-J204VYJ03 |
0.2 |
400 |
200 |
5 |
12 |
2 |
|
HP-2R7-J254VYJ03 |
0.25 |
4000 |
200 |
5 |
12 |
2 |
|
HP-2R7-J354VYJ03 |
0.35 |
500 |
250 |
5 |
12 |
2 |
|
HP-2R7-J504VYJ16 |
0.5 |
700 |
350 |
6.3 |
10 |
2.5 |
|
HP-2R7-J504VYJ17 |
0.5 |
700 |
350 |
6.3 |
12.5 |
2.5 |
|
HP-2R7-J704VYJ06 |
0.7 |
600 |
300 |
8 |
13 |
3.5 |
|
HP-2R7-J704VYJ15 |
0.7 |
2600 |
1300 |
4 |
18 |
1.6 |
|
HP-2R7-J105VYJ06 |
1 |
600 |
300 |
8 |
13 |
3.5 |
|
HP-2R7-J105TYJ16 |
1 |
1100 |
550 |
6.3 |
10 |
2.5 |
|
HP-2R7-J105VYJ17 |
1 |
1300 |
650 |
6.3 |
12.5 |
2.5 |
|
HP-2R7-J155VYJ06 |
1.5 |
700 |
350 |
8 |
13 |
3.5 |
|
HP-2R7-J155VYJ66 |
1.5 |
600 |
300 |
10 |
13 |
5 |
|
HP-2R7-J155UYJ18 |
1.5 |
700 |
350 |
6.3 |
14 |
2.5 |
|
HP-2R7-J155VYJ08 |
1.5 |
500 |
250 |
8 |
16 |
3.5 |
|
HP-2R7-J205VYJ42 |
2 |
480 |
240 |
6.3 |
22 |
2.5 |
|
HP-2R7-J205VYJ70 |
2 |
500 |
250 |
6.3 |
17 |
2.5 |
|
HP-2R7-J205VYJ08 |
2 |
400 |
200 |
8 |
16 |
3.5 |
|
HP-2R7-J205VYJ07 |
2 |
260 |
130 |
8 |
20 |
3.5 |
|
HP-2R7-J205VYJ13 |
2 |
240 |
120 |
10 |
20 |
5 |
|
HP-2R7-J225VYJ13 |
2.2 |
240 |
120 |
10 |
20 |
5 |
|
HP-2R7-J305VYJ42 |
3 |
500 |
250 |
6.3 |
22 |
2.5 |
|
HP-2R7-J335VYJ42 |
3.3 |
500 |
250 |
6.3 |
22 |
2.5 |
|
HP-2R7-J335TYJ07 |
3.3 |
240 |
120 |
8 |
20 |
3.5 |
|
HP-2R7-J335VYJ13 |
3.3 |
140 |
70 |
10 |
20 |
5 |
|
HP-2R7-J405VYJ13 |
4 |
140 |
70 |
10 |
20 |
5 |
|
HP-2R7-J405VYJ09 |
4 |
200 |
100 |
12.5 |
21 |
5 |
|
HP-2R7-J405VYJ07 |
4 |
200 |
100 |
8 |
20 |
3.5 |
|
HP-2R7-J475VYJ09 |
4.7 |
120 |
|
|||
