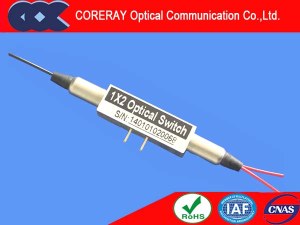

1x2 solid-state fiber optical switch
Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application
Metropolitan Area Network
R&D in Laboratory
System Monitoring
Configurable OADM
Specification
|
Parameters |
|
SOSW-1×2 |
|
Wavelength Range |
nm |
1295~1325,1520~1580 |
|
Testing Wavelength |
nm |
1310/1550 |
|
Insertion Loss |
dB |
Typ: 0.7 ,Max: 1.0 |
|
Return Loss |
dB |
≥50 |
|
Channel Cross Talk |
dB |
≥45 |
|
PDL |
dB |
≤0.10 |
|
Polarization Mode Dispersion |
ps |
≤0.20 |
|
TDL |
dB |
≤025 |
|
Power Handling |
mW |
300 |
|
Switching Speed |
ms |
50~200 |
|
Repeatability |
dB |
2K |
|
Operating Temperature |
°C |
-40~+85 |
|
Storage Temperature |
°C |
-40~+85 |
|
Dimensions |
mm |
(L)58.2×(W)8.4×(H)8.4(±0.2) |
