196MM Paddle 5G External Antenna

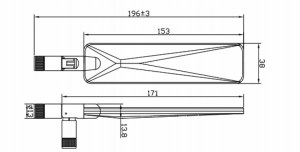

4G 5G NR SMA Connector Mount Ultra Wide Band Antenna High Performance Dimensions 196*38*13.8 cm, 5G 4G LTE/3G/2G Ultra Wideband Omni Direction Paddle Antenna, The 5G NR antenna color has black and white for your option, 3-5dBi External Paddle Antenna 5G 4G LTE.
Features of 196MM Paddle 5G External Antenna
600-960MHZ / 1710-2690/5000-5800MHZ
Foldable SMA Connector
Ultra Wide Band Antenna
High performance
Rubber paddle type
Specification of 196MM Paddle 5G External Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
600-980/1710-2700/5000-5800MHz |
|
Gain |
3-5dBi |
|
|
V.S.W.R |
≤2.5 |
|
|
Impedance |
50Ω |
|
|
Antenna size |
196mm |
|
|
Polarization |
Linear |
|
|
Mechanical |
Inner Material |
PCB |
|
Connector type |
SMA/RP-SMA or customizable |
|
|
Mounting Method |
SMA Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Suzhou Cowin Antenna Electronics Co., Ltd is a professional 5g smart antenna company. We provide Cellular Antenna, WIFI Bluetooth Antenna and so on. Want to know more? Please contact us.
