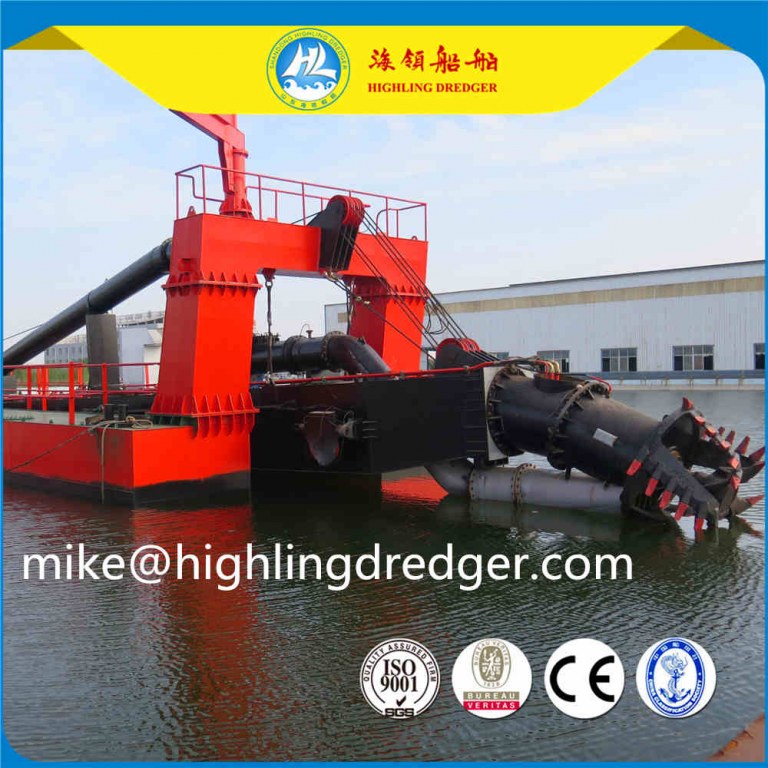

18-inch 3000m³/h HL 450 cutter suction sand dredger for sale
Quantité : 1/set Prix : 200000-980000
1.HL dredger product introduction:
(1) Dredger is self-propelled or non self-propelled
(2) Hull is box-like structure, is made up of several boxes, simple, rapid assembly and dismantling
(3) Dredger equipment include sideslip device, cutter up and down device, location spud device, deck crane, also be equipped with anchor boom and trolley devices to increase capacity
(4) Widely used in sand-excavating, river dredging, desilting, reclamation for channels and land, port construction
(5) Main engine is an independent entertainment form, one main pump engine, one auxiliary hydraulic engine
(6) Dredge pump is driven by main diesel engine through reducing gear box
(7) Alternator, which driven by the auxiliary diesel engine supplies electricity for power and lighting of the whole dredger
Generator sets supplies electricity for lighting and emergency use when it doesn't working
(8) Hydraulic oil pump is driven by the auxiliary diesel engine
(9) Shifting winches, cutter ladder and lifting winch are driven by the hydraulic motor
(10) Cutter head is driven by hydraulic motor, cutter bearing has lubrication seal-in units
(11) Dredger is moved by alternate swing of the spuds, spuds are lifted by the hydraulic cylinder
| HL450 18inch 3000m3/h hydraulic cutter suction dredger | |
| Dredger LOA | 31.0m |
| Hull size(L×B×H) | 23.0*7.5*2.5m |
| Main pontoon(L×B×H) | 13.8*3.5*2.5m |
| Side pontoon (L×B×H) | 22.0*2.0*2.5m |
| Structure | Can be dismantle and re-assemble easily ,box structure, lower delivery cost |
| Main engine brand & power | Cummins /597kW |
| Auxiliary engine brand& power | Cummins /224kW |
| Harbour generator | 30GF/Cummins |
| Dredging pump | Warman Technology |
| Discharge pipe inner Dia. | 450mm |
| Head | 48m |
| Max. dredging depth | 14m |
| Water flow | 3000m³/h |
| Solid sand capacity | 600m³/h |
| Discharge distance | 1500m |
| Cutter head Dia. | 1500mm |
| Cutter power | 80kW |
| Draught | 1.7m |
| Displacement | 224T |
| Hydraulic control system | PLC Siemens |
| Wire rope pulling force (Lifting winch )*Quantity | 80KN *1 |
| Wire rope pulling force (Traversing winch )*Quantity | 80KN *2 |
| Operation room | Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights |
| Total weight | 130T |
| Total power | 851kw |
| Total fuel oil consumption | 123L/H |
