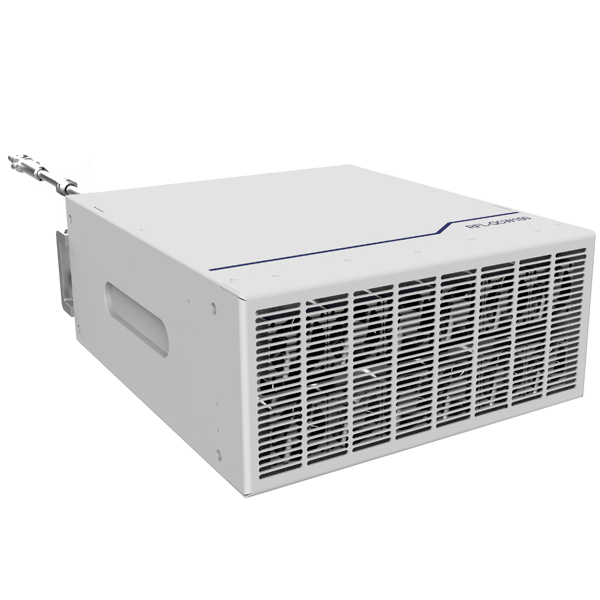

150W QCW Fiber Laser
RFL-QCW150/1500
This QCW fiber laser series product is a perfect alternative of existing light-pumped YAG laser and is an ideal choice for spot welding, seam welding, and other industrial applications, which requires wide pulse and high peak out power due to its diversified compatibility and the convenience for most YAG systems to use with simple transformation.
Characteristics Of Laser Diode 150W
Technical characteristics
Two Work Modes:Continuous and PulsePeak Output 1500WExtremely Stable Output PerformanceExcellent Light Beam QualityQBH Output Connector and Optional Output LengthAir-Cooled Heat Dissipation
Optical Properties
Average power(CW) (W): 250Average power(Pulse) (W): 150Max.Output Power(W): 1500Max. Pulse Energy(J): 15Central wavelength: (nm): 1080±5Repetition Frequency(Hz): 0-5000Pulse Width(ms): 0.05-50Output power instability: ±1.5%Red laser: Yes
Output characteristics
Output connector: QBHoutput fiber core diameter (μm): 25,50BPP(mm.nrad) : <2</span>
Electronic control characteristics
Input power (V DC ): 48Control mode: RS232/AD/ Ethernetpower adjustment range (%): 10-100
Other characteristics
Dimensions (mm ): 450*237*725(handle included)Weight (kg): <50Cooling method: Air-CooledWorking temperature (℃ ): 0-40</span>
Application Of 150W QCW Fiber Laser RFL-QCW150/1500
Alternative of Light-Pumped YAG LasersSpot/Seam WeldingCeramics CuttingPrecision Welding /CuttingElectronic Parts ProcessingPower Battery WeldingSolderingPCB Welding
Wuhan Raycus has always adhered to the market strategy of “domestic base and international expansion” and the corporate spirit of “forging ahead with determination and innovating scientifically and technologically”. Taking the R&D and production of diversified high-quality high-power fiber laser products for all types of industrial processing as our mission, we aim to continue to lead the Chinese high-power fiber laser development and strive to create a china laser source brand and become a world-class fiber laser manufacturer.
