12V 120V ETL APPROVED 3000W INVERTER CHARGER
Prix : 100USD

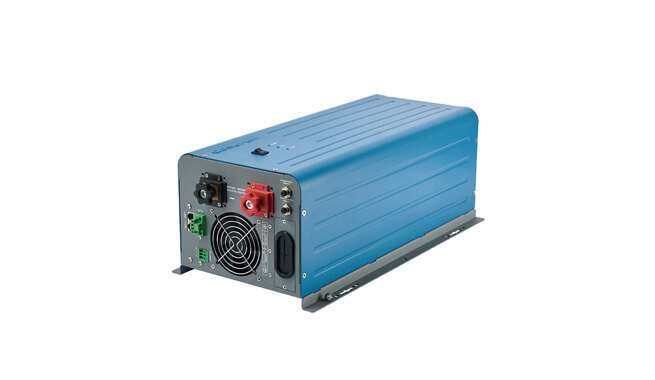

The Cosuper GMC3000 pro-line pure sine wave inverter charger is a perfect power solution with combination of battery inverter, battery charger and automatic transfer switch, which helps save space and simplify installation by reducing the amount of equipment and cables installed in mobile power systems. This unit is designed for easy use in RVs, trucks, fleet vehicles and conversion vans. Ideal for powering tools, saws, motors, pumps, portable lighting, appliances and computer equipment in heavy-load conditions.
Unique temperature-compensated charging design helps extend battery life by dynamically adjusting voltage based on ambient temperature. It ensures maximum charging in colder conditions while reducing the risk of overcharging the battery in warm conditions.
FEATURES OF 12V 120V ETL APPROVED 3000W INVERTER CHARGER
Approved by ETL standard
CAN-BUS+RS485 communication
Low THD ensure sensitive loads working stably
MAX. 90A charge current for AGM/GEL/Flooded/Lithium batteries
Provide CR80 RV control center, PTM-12 remote controller and CR70 Enginnering Mode Panel (optional)
Extra charging function for starter battery
Keep working continuously with full power output at -10~50℃
Ultra-low idle consumption could effectively save the energy
Auto GEN start/stop
Electronic protection against Over/under voltage, overload, overheating, short circuit
2 years warranty
TECHNICAL SPECIFICATIONS OF 12V 120V INVERTER CHARGER
|
Models |
GMC3000 |
|
Rated Power(-10-50℃) |
3000W |
|
DC Input |
|
|
Rated Voltage |
12VDC (10.5~15.5VDC) |
|
Max. Charge Current |
90A-house battery; 3A-start battery |
|
Battery Type |
AGM/Gel/Flooded/Lithium |
|
AC Input |
|
|
Output Voltage |
170-275VAC/93.5-126.5VAC |
|
Input Frequency |
45~65Hz |
|
AC Output |
|
|
Output Voltage |
230VAC±5%/120VAC±3% |
|
Oput Frequency |
50/60Hz±1% |
|
Wave Form |
Pure Sine Wave |
|
Transfer Time |
≤6ms |
|
Efficiency |
>90% |
|
Overload |
105-120% 10s/ >120% 3s/ >150% 1s |
|
Max. Bypass |
3600W |
|
Protection |
DC over/low volt, AC input low/low volt, AC short circuit, over temp, overload |
|
Self-consumption |
10W |
|
Protection |
|
|
Dc Low-volt Alarm/Shutdown |
11.0V/ 10.5V (Customizable at Engineering mode) |
|
AC Low-volt Switch to DC |
187.0V (Customizable at Engineering mode) |
|
Bypass To Invertering |
198.0V (Customizable at Engineering mode) |
|
Battery Over-charge Shutdown |
15.7V |
|
General |
|
|
Working Temperature |
-10~50℃ |
|
Storage Temperature |
-20~50℃ |
|
Work/ Storage Humidity |
0-90% No condensation |
|
Dimension (W*D*H) |
500*259*190mm |
As a reliable inverter factory, we can offer kinds of inverter china for sale, anything you need, please leave us a message.
