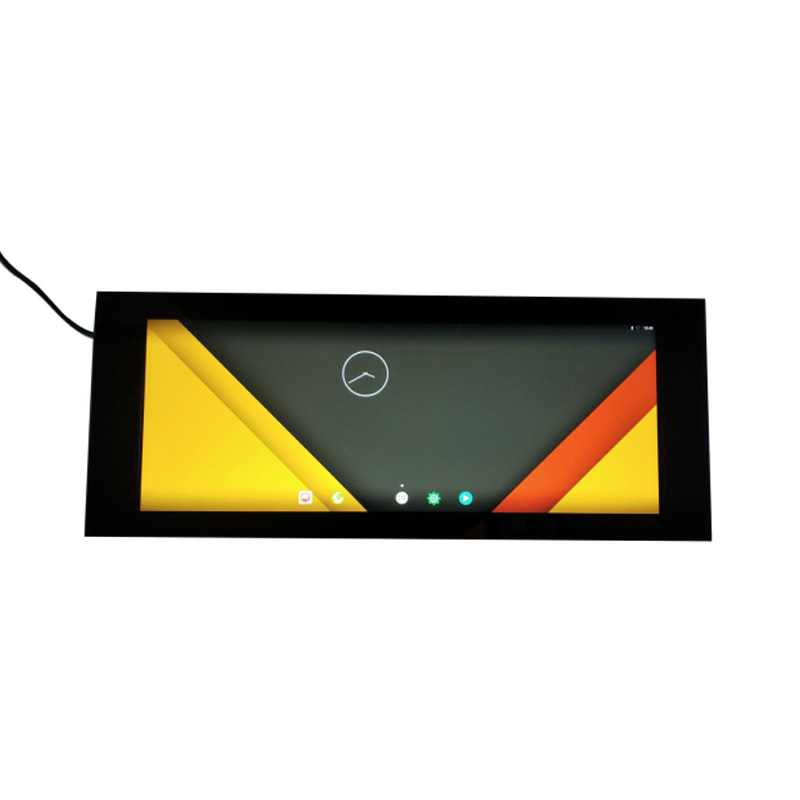

12.3 Inch Bar Type 1920x720 LCD Display With The Main Board
Quantité : 800,000pcs Prix : USD3-USD200
Kingtech 12.3inch 1920x720 LCD screen has an existing Android & Linux Board. The 12.3inch is IPS /full/all/free/wide TFT LCD module.
This 12.3 inch lcd is also wide operating temperature, it's -30~+85C. The 12.3 inch screen has capacitive touch, but we can custom LCD screens according to the customer requirements. The 12.3 inch display is 850nits and can saw under the sun.
Features of 12.3 Inch Bar Type 1920x720 Display With The Main Board
1920x720 resolution /High definition resolution
IPS/Free/All/Wide/Full type
High brightness/Sunlight readable/850nits
Landscape / Horizontal display
Support Bluetooth
Support 2G/3G/4G
USB x 2 / HDMI 1.4 output / AUDIO OUT
Can be used on Raspberry Pi
Operating temperature -30 to +85℃
Support capacitive touchscreen
Support Android & Linux LCD module
Specification of 12.3 Inch Bar Type 1920x720 LCD Display With The Main Board
Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requirements of specifications will be welcomed.
Item |
12.3inch 1920x720 with touch complete solution |
Model No. |
PV135-PV012304LXD50F |
Resolution |
1920×720 |
Display Color |
16.7M |
Outline Dimension |
348mm×140mm×47.5mm |
Active Area(mm) |
292 mm×109.5 mm |
Viewing Angle |
All |
Display Mode |
Normally Black |
Operating Temperature |
-30 to +85℃ |
Storage Temperature |
-30 to +85℃ |
Brightness |
850nits |
Backlight Life-Time |
>30000h |
Touch Screen |
Capacitive touch panel |
Touch Times |
1 million times at least |
Operating System |
Android/Linux |
CPU |
Allwinner A40i Quad Core A7@1.5GHz |
GPU |
Mali 400 MP2 |
DDR/RAM |
1GB |
EMMC/FLASH |
8GB |
Bluetooth |
Support |
2G/3G/4G |
Extensible 3G data/4G data function, support WCDMA, EVDO, CDMA, GSM, 2G/3G full frequency band support 850/900/1800/1900MHz/2100MHz |
Interface |
USB x 2 |
TF Interface |
Support 128G max |
Wired network |
RJ45 |
WIFI Interface |
IEEE 802.11 b/g/n WLAN |
Application of 12.3 Inch Bar Type 1920x720 LCD Display With The Main Board
The 12.3inch 1920x720 IPS LCD with Android & Linux Board TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, monitoring, oscilloscope, logistics device, automotive equipment, and E-Bike.
For more information about lcd display panel and buy lcd screen, please feel free to contact us!
Personne à contacter : Wang Helen, 0755 23037763
