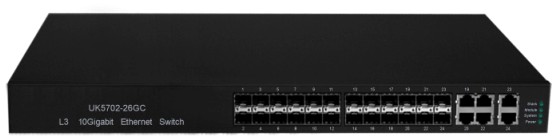

10Gb Fiber Backbone Switch UK5702-26GC
Quantité : MOQ=1
10Gb Fiber Backbone Switch UK5702-26GC is a standard Layer 3 non-blocking swi ion of medium and small-sized network.
Product features:
1 . High performance
(1) with 198G backplane bandwidth
(2) hardware routing, wire-speed L3 switching packet forwarding rate up to 147.31Mpps
(3) can be deployed in the core of MAN , and provides several final 1 km technology
2 . Safety
(1) provide DOS, distributed denial of service, deception and virus defense
(2) support IEEE802.1x, provide port-based user au afety control, and strategy control technology
(3) restrict maximum number of connected hosts por ng, increasing bandwidth and system redundancy
(4) powerful ACL, support for L2-L4 layer data filtering
(5) support QinQ function
(6) strategy control list, flow regulation
3 . Easy to use and maintain
(1) use clustering technology, support multiple de ntralized management to save address resources
(2) a variety ways of management via Web, SNMP etc.
(3) support XModem protocol, can be used to upgrade software and BootRom by TFTP/ZMODEM
(4) support DHCP server and relay functions, dynamic allocation of IP address
(5) support SFP+, also downward compatible XFP
(6) provide redundant power supply, fast failover nection, greatly increasing system reliability
4. Powerful flow and broadcast management
(1) automatically detect and suppress broadcast st ffectively restrict broadcast packets flooding
(2) support full duplex mode and half duplex mode flow control
(3) support Ethernet interface 1M step rate limit
(4) advanced buffer management, support 802.1p pro 8 transmit queues mapping 8 priority of 802.1p
(5) support IP multicast and QoS
5. Kinds of routing strategy
(1) support static routing
(2) support RIP v1/v2, OSPFv2, BGPv4 and other dynamic routing protocol
(3) support PIM-SM, PIM-DM, DVMRP and other multicast routing protocol
(4) MPLS-based exchange routing and ECMP-supported routing balanced loading
Product technical parameters:
Product model |
UK5702-26GC |
|
Basic characteristics |
||
Fixed port |
24 Gigabit optical ports, 6 multiplexing Gigabit e al ports, maximize scalable to 2 10Gb ports |
|
The backplane bandwidth |
198Gbps |
|
Packet forwarding rate |
147.31Mpps |
|
Processor |
RISC 600MHz |
|
Flash memory capacity |
8MB |
|
The memory capacity |
64MB, Max. 512MB |
|
Address table |
32K |
|
Queue buffer |
64MB |
|
Product characteristics |
||
Spanning tree |
Support STP, RSTP, MSTP |
|
VLAN |
Support port-based VLAN |
|
Flow control |
Standard-based IEEE 802.3x flow control Support CAR function |
|
Broadcast control |
Suppress broadcast storms, reaches a critical point to stop sending |
|
multicast control |
IGMP Snooping multicast packet automatically monitoring |
|
multicast routing |
IGMP v1/v2/v3, MLDv2 |
|
Port binding |
Each set of up to 8, while supporting128 group |
|
Port mirroring |
Support flow classification-based mirroring Support port mirroring |
|
Stacked |
The hard stack 16, soft stack 32 Using a unified IP address to carry on centralized management to save address resources |
|
Routing management |
Static routing |
|
Strategy routing |
Support IP-based strategy routing |
|
The proxy function |
Support Proxy ARP, DNS Proxy |
|
Redundancy backup |
Support for VRRP, HSRP Hot Standby Router Protocol |
|
Characteristics of DHCP |
DHCP Server, DHCP Client and support DHCP relay |
|
Function of NAT |
Support the static or dynamic NAT address translation function |
|
Safety characteristics |
IEEE 802.1x port certification, PKI certification
Hardware support for IP ACL ACL ACL, MAC, VLAN |
|
Quality of service |
IEEE 802.1Qau congestion mechanism |
|
Network management |
SNMP v1/v2/v3 |
|
Physical characteristics |
||
Appearance size |
442mm × 316mm × 44mm |
|
Power characteristic |
AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup |
|
Power |
Max.80W |
|
Indicator |
Power indication, system instruction, connecting / transceiver instructions |
|
Environment humidity / temperature |
0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation |
