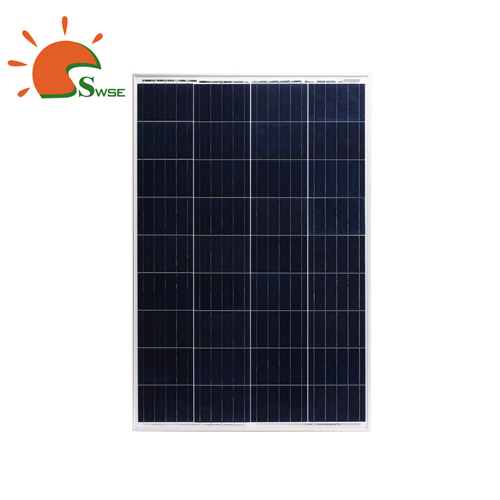

100W Polycrystalline Solar Panel
Sunworth, as one of the professional solar equipment manufacturers and solar electric system providers, implementing strict international standard quality management system ISO 9001: 2015 and ISO14001: 2015.
100W High Efficiency Polycrystalline Solar Panel
Standard 36 cells customizable poly solar PV panel 100~160W, with the reduction of polysilicon production cost, the solar PV industry is developing rapidly. 100w poly solar panel is widely used in small household power supplies, transportation, communications, PV power plants, lighting and other fields. This series of 100 watt polycrystalline solar panel in Sunworth is highly praised by our customers.
Advantages of 100W Polycrystalline Solar Panel
- 12 years of old-brand solar PV module manufacturer.
- Perfect quality supervision and testing procedures.
- Great working performance when sunlight is weak.
Product Parameters of 100W Polycrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW100P-36 |
SW150P-36 |
SW160P-36 |
|
Max Power |
100W |
150W |
160W |
|
Max Voltage |
18.54V |
18.54V |
18.92V |
|
Max Current |
5.40A |
5.40A |
8.46A |
|
Open-circuit Voltage |
22.32V |
22.32V |
23.04V |
|
Short-circuit Current |
5.84A |
5.84A |
8.94A |
|
Module Efficiency |
14.96% |
14.96% |
16.26% |
|
Operating Temperature |
-40℃~+85℃ |
||
|
Max System Voltage |
600Vdc |
1000Vdc |
1000Vdc |
|
Max Series Fuse Rating |
10A |
15A |
15A |
|
Power Tolerance |
±3 |
||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
157*157mm |
157*157mm |
157*157mm |
|
Cell amounts |
36(4*9) |
36(4*9) |
36(4*9) |
|
Module Dimensions |
665*1005*30mm |
665*1480*30mm |
665*1480*30mm |
|
Weight |
7.2kg |
10.6kg |
10.6kg |
|
Front Cover |
3.2mm tempered glass |
||
|
Frame Material |
Anodized aluminium alloy |
||
|
Junction Box |
IP65 rated |
||
|
Output Cables |
2.5mm2, Length 700mm+MC4 |
||
Packing
|
Power |
100W |
150W |
160W |
|||
|
Packing |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
|
Pieces/Carton |
35 |
35 |
35 |
35 |
35 |
35 |
|
Pieces/Container |
860 |
2310 |
602 |
1575 |
602 |
1575 |
Personne à contacter : Wang Bella, 0769 23320882
