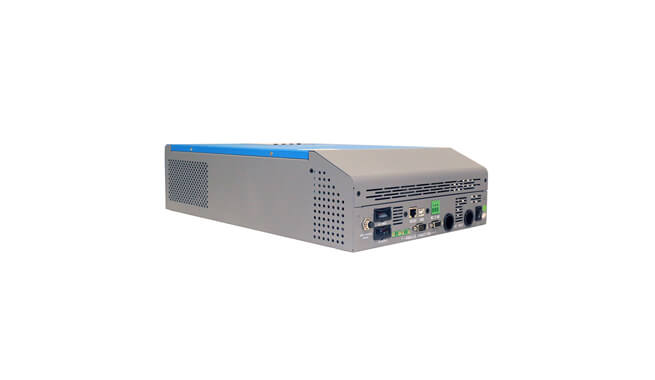

1000VA SOLAR INVERTER CHARGER
The Cosuper SPE1000 Solar Inverter Charger is a multi-functional model, combining functions of inverter, solar charger controller and AC charger to offer uninterruptible power support, making it ideal for off grid solar systems, including small PV plants, individually for small houses, mobilehouse, both indoors and outdoors.
Its comprehensive LCD display offers user configurable and easy accessible button operations such as battery charging current, AC or solar power priority, selectable input voltage based on different applications.
What's more, this device has been designed to operate in a wide range of temperature conditions, from -20°C to +50°C, which makes it a superior solar inverter china charger in the off grid solar industry.
FEATURES OF 1000VA SOLAR INVERTER CHARGER
Suitable for PWM 50A solar or MPPT 60A solar charger
Support smart LCD settings (operating mode, charging current, charging voltage, etc.)
Built-in multiple protections: overvoltage/undervoltage, overload, overheating, short circuit protection
Cold start function
2 years warranty
TECHNICAL SPECIFICATIONS OF 1000VA SOLAR INVERTER CHARGER
|
Models |
SPE1000 |
|
(PWM ver.) Battery System Voltage |
12VDC |
|
(MPPT ver.) Battery System Voltage |
24VDC/48VDC |
|
Inverter Output |
|
|
Rated Voltage |
1000VA/800W |
|
Surge Power |
2000VA |
|
Waveform |
Pure Sine Wave |
|
AC Voltage Regulation(batt. Mode) |
220VAC~240VAC |
|
Output Voltage |
220/230/240 VAC±3% |
|
Inverter Efficiency(peak) |
0.93 |
|
Transfer Time |
10ms (UPS), 20ms(APL) |
|
Battery |
|
|
Rated Voltage |
12VDC/24VDC for PWM Ver.; 24VDC/48VDC for MPPT Ver. |
|
Floating Charge Voltage |
13.5VDC/27VDC/54VDC |
|
Overcharge Protection |
15VDC/30VDC/60VDC |
|
PWM Ver. Charging Info |
|
|
(PWM ver.) PV Open Voltage |
40VDC for 12V Batt; 80VDC for 24 Batt |
|
Standy Power Consumption |
1W |
|
(PWM) Solar Charge Current |
50A |
|
(PWM) Maxium Solar Input |
600W |
|
Maxium AC Charge Current |
20A |
|
(PWM ver.) Joint Charge Current |
70A |
|
MPPT Ver. Charging Info |
|
|
(MPPT ver.) PV Open Voltage |
75V-24V Batt; 102V-48V Batt |
|
Standy Power Consumption |
2W |
|
(MPPT) Solar Charge Current |
25A-24V Batt; 20A-48V Batt |
|
(MPPT) Maxium Solar Input |
600W-24V; 900W-48V |
|
Maxium AC Charge Current |
30A-24v Batt; 60A-48V Batt |
|
(MPPT ver.) Solar Current+AC Current |
55A-24V Batt; 80A-48V Batt |
|
General Parameter |
|
|
Operating/ Storage temperature |
0~55℃/-15~60℃ |
|
Working Humidity |
5%~95% relative humidity(Non-condensing) |
|
Cooling |
Auto fan cooling |
|
(PWM ver.) Dimensions(D*W*H)(mm) |
95*240*316 |
|
(MPPT ver.) Dimensions(D*W*H)(mm) |
128*272*355 |
|
(PWM ver.) Net Weight(kg) |
5 |
|
(MPPT ver.) Net Weight(kg) |
7.4 |
