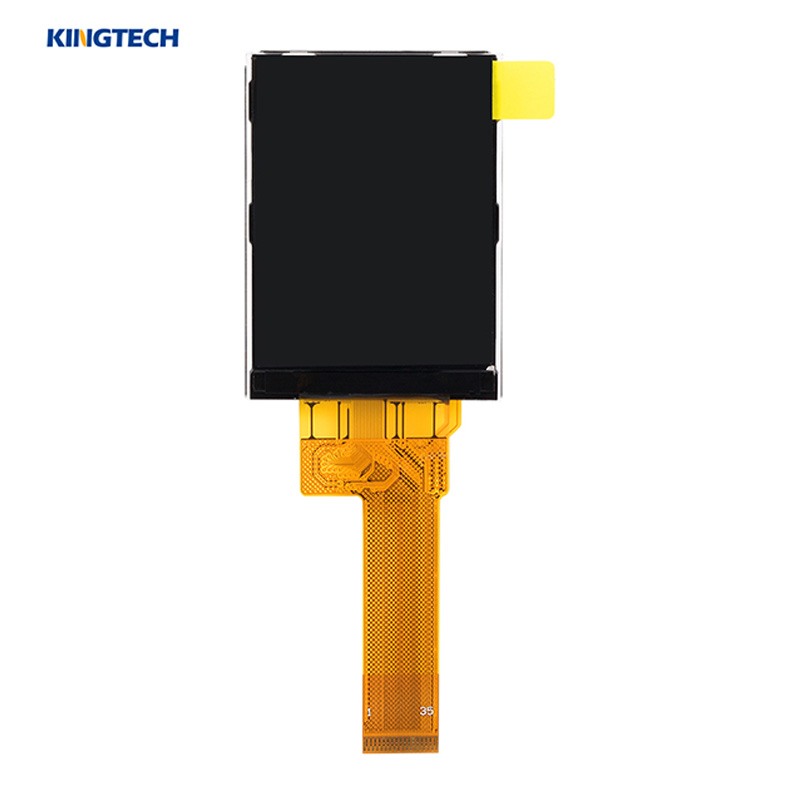

1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display
Kingtech 2.0inch 240x320 (QVGA) IPS/free/all/wide viewing angle TFT LCD display is very popular in the market.
This one is portrait type, and it's mainly used for handheld devices, medical and E-bike. Plus the 2.0inch can reach 1000nits, so it can be sunlight readable. The 2.0 tft inch IPS display can custom TFT resistive touchscreen and capacitive touch.
Kingtech Diaplay promoises that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
Features of 1000nits High Brightness 2.0 Inch 240x320 TFT LCD Display
All/Free/Wide viewing angle
240x320 resolution / QVGA resolution
IPS type
16bit RGB interface
High brightness tft display sunlight readable/1000nits
Can custom resistive touch and capacitive touch
Small / tiny display
Specification of 1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display
|
Item |
2-inch LCD screen |
|
Model No |
PV02004LZR35G |
|
Resolution |
240*320 |
|
Outline Dimension |
35.9(W)×51.66(H)×2.75(T) |
|
Active Area(mm) |
30.60(W)×40.80(H) |
|
Brightness |
1000 cd/m2 |
|
Viewing Angle |
Free |
|
Interface |
4SPI+16-bit RGB interface |
|
Warranty |
12 months |
|
Driving IC |
ST7789V |
|
Display Mode |
TFT |
|
PIN |
35 |
|
Operating Temperature |
-20~70 |
|
Storage Temperature |
-30~80 |
Application of 1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display
The 2.0inch IPS display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machines,s and telecom products.
The 2.0inch IPS 1000nits also can be used in sunlight-readable such as advertising machines, automotive devices, and E-bike.
As one of lcd display module factories, we have different kinds of custom lcd display for sale, anything you need, please contact us.
