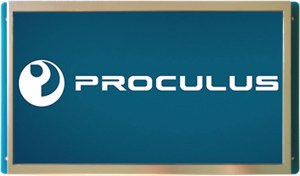

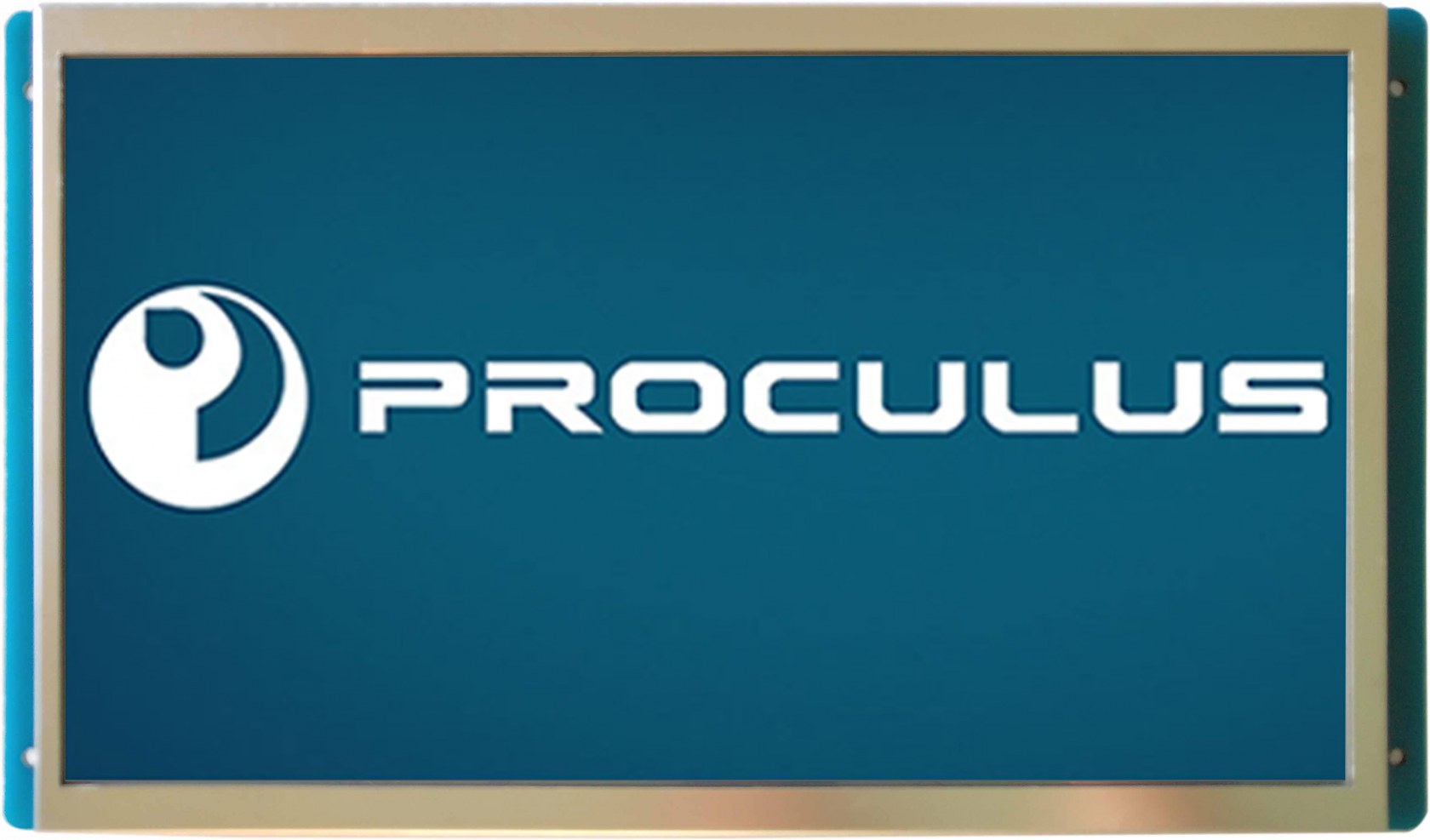

10.1 INCHES, 1024XRGBX600, 65K COLORS LCD MODULE
MODEL: P10600V101C_T30
Features of 10.1 Inch 1024 600 LCD Module
Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;
Support RS232/TTL/CMOS, the max baud rate is 921600bps;
Support audio and video;
Support hardware JPG decoding which makes storage more efficient and display quicker;
Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.
Immunity Test of 10.1 Inch 1024*600 LCD Module
ESD test for electrostatic discharge
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: Carry out contact and air discharge on the periphery of the iron frame and the display area of the serial port screen in turn, and observe whether the screen has abnormal working phenomena such as reset restart, black screen, white screen, communication interruption, and other abnormalities.
EFT Test
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: The power supply line supplies power to the screen through the power supply after the pulse Group generator is coupled with the pulse Group; the serial port signal line carries out serial port communication with the screen through the signal after the pulse Group generator is coupled with the pulse Group; and the screen is observed whether abnormal working phenomena such as reset restart, black screen, white screen, abnormal communication, and communication interruption.
Proculus Technologies is a leading lcd panel company, we provide touch screen lcd display module, lcd screen module, 10.1 hd tft lcd color monitor, 10.1 inch lcd and etc. Want to know more? Contact us now.
