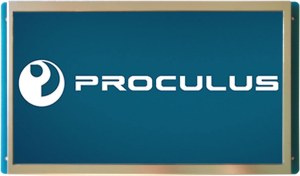

10.1 Inch 1024600 LCD Module
Proculus Technologies is the leading TFT LCD manufacturer in the industry of embedded devices, focusing on All-in-one TFT LCDs including UARTs and Android Solutions. As a custom LCD and screen display manufacturer, Proculus can provide you the custom LCD display, screen, and panel according to your demand. Now, we are focusing on exploring the world market and eager to provide the great products and services for the customer from all over the world. Proculus makes a complete and ever-improving LCD display solution for Intelligent displays that makes GUI development simple, cost-effective, and fast. Do not hurry to purchase the LCD products before contact Proculus. It provide lcd screen module, tft display monitor, lcm android, usb lcd display module and so on.
Features of 10.1 Inch 1024x600 LCD Module
Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;
Support RS232/TTL/CMOS, the max baud rate is 921600bps;
Support audio and video;
Support hardware JPG decoding which makes storage more efficient and display quicker;
Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.
Specifications of 10.1 tft lcd monitor 1024*600 LCD Module
Modification Record
Date |
Content |
||||||||||||||||||
2018/05/30 |
First release |
||||||||||||||||||
2020/10/16 |
ESD reliability testing has been added |
||||||||||||||||||
Color |
65K (65536) colors,16 bit color 5R6G5B |
||||||||||||||||||
Visual Angle L/R/U/D |
70°/70°/50°/70° |
||||||||||||||||||
Resolution |
1024*600,90° rotated display (600*1024) |
||||||||||||||||||
Backlight /Lifecycle/Brightness |
LED/20,000 HOURS/ 400 cd/m²/(100 level adjustment) |
||||||||||||||||||
Working Temperature |
-20~+70℃/-30~+80℃ |
||||||||||||||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||||||||||||||
Power Voltage |
|
6 |
12 |
35 |
V |
||||||||||||||
Operation Current |
VIN = 12V, Backlight on |
— |
335 |
— |
mA |
||||||||||||||
VIN = 12V, Backlight off |
— |
95 |
— |
|
|||||||||||||||
Note:Short-circuit J25 to choose Power Input as 5V (4.5V~5.5V) |
|||||||||||||||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||||||||||||||
Baud Rate |
Standard |
1200 |
— |
921600 |
bps |
||||||||||||||
Interface |
TTL/CMOS(Short-circuit J17 to choose RS232) |
||||||||||||||||||
Data Format |
1 byte for initial, 8 bytes for data, invalid bytes for checksum, 1 byte for end. |
||||||||||||||||||
Buzzer |
YES |
||||||||||||||||||
RTC |
YES |
||||||||||||||||||
Audio Port |
Support *.MP3 format. No time limit for single file. Theoretically 4096 files at maximum. Loudspeaker: 8Ω2W. |
||||||||||||||||||
USB |
YES. For downloading offline or data copy. |
||||||||||||||||||
Memory |
128M(support *.jpg files, maximum 65536 files theoretically), extended to 1G at maximum. |
||||||||||||||||||
J3 Pin Num. |
Pin Name |
Remarks |
J3 Pin Num. |
Pin Name |
Remarks |
||||||||||||||
1 |
GND |
— |
5 |
DOUT |
Serial output |
||||||||||||||
2 |
GND |
— |
6 |
NC |
Undefined |
||||||||||||||
3 |
NC |
Undefined |
7 |
VIN |
Power input |
||||||||||||||
4 |
DIN |
Serial input |
8 |
VIN |
Power input |
||||||||||||||
Parameter |
Data |
||||||||||||||||||
Net weight of single piece |
445g (no touch)/550g(resistive touch screen)/560g (capacitive touch screen) |
||||||||||||||||||
Weight of whole case |
9.9kg (no touch)/12kg(resistive touch screen)/12.2kg (capacitive touch screen) |
||||||||||||||||||
Packing box size |
500(mm)×335(mm)×190(mm) |
||||||||||||||||||
Packing specification |
20 pieces /box |
Immunity Test of 10.1 Inch 1024*600 LCD Module
ESD test for electrostatic discharge
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: Carry out contact and air discharge on the periphery of the iron frame and the display area of the serial port screen in turn, and observe whether the screen has abnormal working phenomena such as reset restart, black screen, white screen, communication interruption, and other abnormalities.
Discharge type |
Discharge value |
Result |
Contact discharge |
±6KV |
Working properly. |
Air discharge |
±15KV |
Working properly. |
Note: All tests are conducted when the products are exposed. In the actual use process, when the serial port screen is assembled on the user equipment, the screen and the equipment are kept well-grounded, the ESD performance of the whole machine will be better. |
EFT Test
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: The power supply line supplies power to the screen through the power supply after the pulse Group generator is coupled with the pulse Group; the serial port signal line carries out serial port communication with the screen through the signal after the pulse Group generator is coupled with the pulse Group; and the screen is observed whether abnormal working phenomena such as reset restart, black screen, white screen, abnormal communication, and communication interruption.
Test item |
Test standard |
Result |
|
Voltage |
Frequency |
||
Power cord |
4 KV |
100 KHz |
Working properly. |
Signal line |
2 KV |
100 KHz |
Working properly. |
Interface Name |
Description |
Loudspeaker |
8Ω/3W, PH2.0-2 socket. |
USB interface |
For downloading offline or data copy. Cannot be used for power supply. Please refer to UnicView Connection Guide. |
User interface |
Used for power supply serial communication. Standard serial communication protocol. 8 pin_2.0mm socket. |
Note: The products of our company may always be updated, and are subject to change without notice unless modification of key structure process or major adjustment of layout is involved. The real products shall prevail. |
