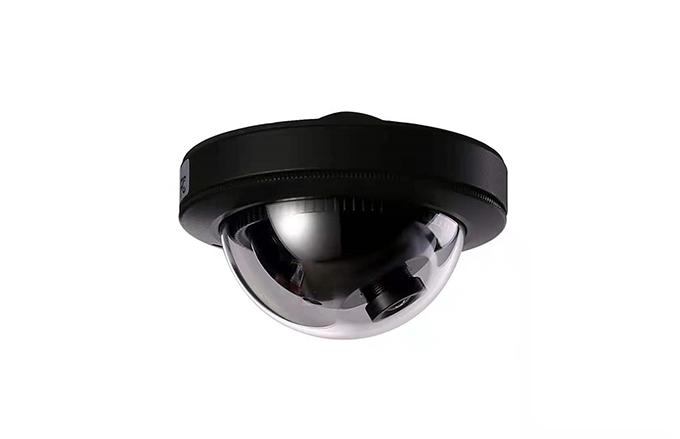

1/3 inch DSP Color Dome AHD Camera

1/3 inch DSP Color Dome AHD Camera

This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera can produce high definition images with little distortion.

Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal. AHD system is the same as a traditional analog system, using a common 75-3 coaxial cable to carry out as far as 500 meters of HD video without any video signal loss.

Cautions of 1/3 Inch DSP Color Dome AHD Camera

In order to protect the all around car camera, please avoid placing or using the camera under direct sunlight.

Please ensure that the input voltage range is within the specifications.

Please do not place the camera in a location with a temperature exceeding 50ºC.

Do not attempt to service the camera by yourself. Please refer all services to qualified dealers.

Packing list of 1/3 Inch DSP Color Dome AHD Camera

Camera 1

Instruction Manual 1

Mounting Screw 4

M2.5 Hex Screw 1

Fig.2

Use the Torx-key supplied (1) to loosen the Torx-type screw (3) then unscrew the top cover (2).

Attached is the mounting base (4) to the wall or ceiling, Use the supplied screw (3) to fix the camera in position ~ a firm mounting surface is essential for a stable installation.

Connect the DC jack to 12VDC and connect the BNC jack to a video output.

Adjust camera position by loosening the inner knurled ring (6), adjust the focus sharpness by loosening the focus-lock screw (5).

Fig.1 shows the camera flush-mounted eg. on a ceiling tile, where the surface can be bored to accommodated the back of the camera housing(4).

Fig.2 shows the method for panning and tilting the camera. Loosen the locked ring (6) and position the camera as required.

Specifications of 1/3 Inch DSP Color Dome AHD Camera

*Specifications are subject to change without prior notice.

● Input voltage exceeding the nominal rating by over +/-10% will cause abnormal operation.

As one of police body cam companies, we can provide kinds of body camera for sale, if you are interested, please contact us.
