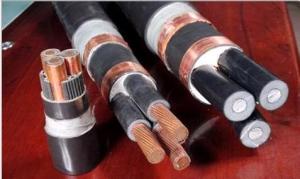

0.6/1kv up to 35kv PVC/XLPE Aluminum/Copper Power Cable
Quantité : 100000km/m Prix : usd 9.9lkm
Product Description
Voltages up to 35kv PVC/XLPE Power Cable
Brief Introduction
PVC/XLPE power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Standard
The products can be produced according to our factory specification which is equivalent to the standard IEC60502. The factory can also design and manufacture special power cable according to the other standards required by the customers.
Properties of PVC Power Cable
1. The long-time permissible working temperature of cable conductive core is not more than 70 degrees.
2. During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165° C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0° C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
Properties of XLPE Power Cable
1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4. Excellent electrical performance, resistance to chemical corrosion.
5. Can stand advisable traction when laid. Can stand traction from Outside. Left low smoke halogen-free after burned. Retard the burning of the cable.
Nominal Cross-sectional Areas
1.5 mm2, 2.5 mm2, 4 mm2, 6 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2, 70 mm2,
95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2 400 mm2, 500 mm2, 630 mm2,
800 mm2
Production range
Single core cable: From 1.5 mm2 to 800 mm2,
Multi-core cable: From 1.5 mm2 to 400 mm2
China Type |
Description |
Application |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC) |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE) |
|
YJV62 |
YJLV62 |
XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC) |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
Personne à contacter : Joyce Xiong, 008657186160530
