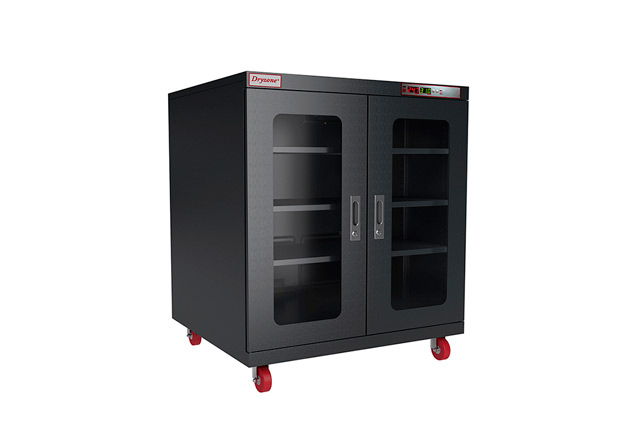

<5% Rh Dry Cabinet C2E Series
C2E Series dry box humidity control is auto less than < 5% RH, just plug it, and it could work. According to IPC/JEDEC J-STD-033 standards, moisture-sensitive device (MSD) levels of 4, 5, 5a, and 6 should be stored in a <5%RH environment. C2E Series humidity control dry cabinet is specially designed for this need. And the recovery time is 30 minutes after opening the door and closed within 30 seconds without fill N2.</span>
Specifications of <5%Rh Dry Cabinet C2E Series</span>
C2E-1200-6 Humidity Dry Cabinet
|
Outside Dimension |
W1200*D695*H1820MM |
|
Internal Dimension |
W1198*D645*H1618MM |
|
Capacity |
1250L |
|
Shelves |
5 shelves |
|
Power Consumption |
105w/h(Ave); 300w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-600 Dry Cabinet (Humidity Control Dry Box)
|
Outside Dimension |
W600*D695*H1820MM |
|
Internal Dimension |
W598*D645*H1618MM |
|
Capacity |
624L |
|
Shelves |
5 shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-400 Dry Cabinet with Temperature Control
|
Outside Dimension |
W600*D695*H1274MM |
|
Internal Dimension |
W598*D645*H1071MM |
|
Capacity |
413L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-575 Humidity Control Dry Cabinet
|
Outside Dimension |
W905*D823*H1050MM |
|
Internal Dimension |
W903*D773*H869MM |
|
Capacity |
607L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-315 Humidity Control Dry Box
|
Outside Dimension |
W905*D475*H1050MM |
|
Internal Dimension |
W903*D425*H869MM |
|
Capacity |
334L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-157 Humidity Control Dry Cabinet
|
Outside Dimension |
W600*D672*H1820MM |
|
Internal Dimension |
W448*D425*H869MM |
|
Capacity |
165L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
Features of <5%Rh Humidity Control Dry Cabinet C2E Series</span>
|
Humidity range |
<5%RH</span> |
|
Display Precision |
3%RH, 1℃ |
|
Structure |
1mm thick carbon steel with paint. |
|
Door |
Handles, airtight magnetic sealers, and reinforced glass. |
|
Wheel |
Four 3'' wheels, two of them with brakes. |
|
Grounding Wire |
1MG (940mm Long) |
Our industrial drying cabinets are engineered to meet the unique needs of industries such as construction, automotive, aviation, and military, as well as other applications that require high-performance drying. Our ESD dry cabinets are constructed using premium materials and advanced technology, ensuring that they are built to withstand harsh environments and heavy usage.
Dryzone CF1 Series: <1 Rh Low </span>Humidity Dry Cabinet
Dryzone C2E Series: <5% Rh </span>Dry Cabinet with Temperature Control
Dryzone C1U/C1B Series: 1-50% Rh Humidity Storage Cabinet
Dryzone C15U/C15B Series: 15-50% Rh Dry Box Desiccator
Now the price of dehumidifier dry cabinet is reasonable, if you have needs, please contact us.
