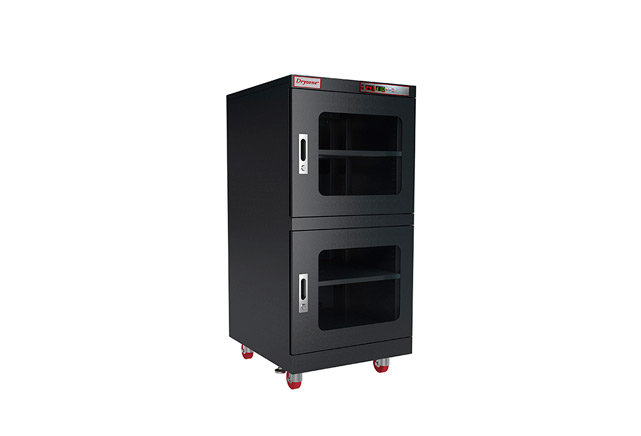

<5% Rh Dry Cabinet C2E Series
C2E Series is auto less than < 5% RH, just plug it, and it could work. According to IPC/JEDEC J-STD-033 standards, moisture-sensitive device (MSD) levels of 4, 5, 5a, and 6 should be stored in a <5%RH environment. C2E Series is specially designed for this need. And the recovery time is 30 minutes after opening the door and closed within 30 seconds without fill N2.</span>
Specifications of <5%Rh </span>Humidity Dry Cabinet C2E Series
C2E-1200-6 Dry Box Cabinet
|
Outside Dimension |
W1200*D695*H1820MM |
|
Internal Dimension |
W1198*D645*H1618MM |
|
Capacity |
1250L |
|
Shelves |
5 shelves |
|
Power Consumption |
105w/h(Ave); 300w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-600 Dry Storage Cabinet
|
Outside Dimension |
W600*D695*H1820MM |
|
Internal Dimension |
W598*D645*H1618MM |
|
Capacity |
624L |
|
Shelves |
5 shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-400 Dry Cabinet
|
Outside Dimension |
W600*D695*H1274MM |
|
Internal Dimension |
W598*D645*H1071MM |
|
Capacity |
413L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-575 Dry Cabinet
|
Outside Dimension |
W905*D823*H1050MM |
|
Internal Dimension |
W903*D773*H869MM |
|
Capacity |
607L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-315 Dry Cabinet
|
Outside Dimension |
W905*D475*H1050MM |
|
Internal Dimension |
W903*D425*H869MM |
|
Capacity |
334L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
C2E-157 Dry Cabinet
|
Outside Dimension |
W600*D672*H1820MM |
|
Internal Dimension |
W448*D425*H869MM |
|
Capacity |
165L |
|
Shelves |
3shelves |
|
Power Consumption |
55w/h(Ave); 150w/h(Max) |
|
Color |
Black |
|
ESD Paint |
106~109Ω (surface resistance) |
|
Voltage |
230V/110V |
Features of <5%Rh Dry Cabinet C2E Series</span>
|
Humidity range |
<5%RH</span> |
|
Display Precision |
3%RH, 1℃ |
|
Structure |
1mm thick carbon steel with paint. |
|
Door |
Handles, airtight magnetic sealers, and reinforced glass. |
|
Wheel |
Four 3'' wheels, two of them with brakes. |
|
Grounding Wire |
1MG (940mm Long) |
